1:500 Resolution Spectrometer



contact us about this product
%title% %title% %title%

Overview

The D-Pace 1:500 Mass/Energy Spectrometer System has been designed for resolving charged particle beams with Bρ = 0.2196 T•m to better than 1 part in 500 in energy. The system comes complete with all stands, vacuum chambers, slits, Faraday cup, spectrometer magnet, power supply and control system.  Installation, commissioning, and training can also be provided.  Custom modifications can also be undertaken to meet your particular beam kinetic energy, charge state, particle mass, and beam current conditions.


Features

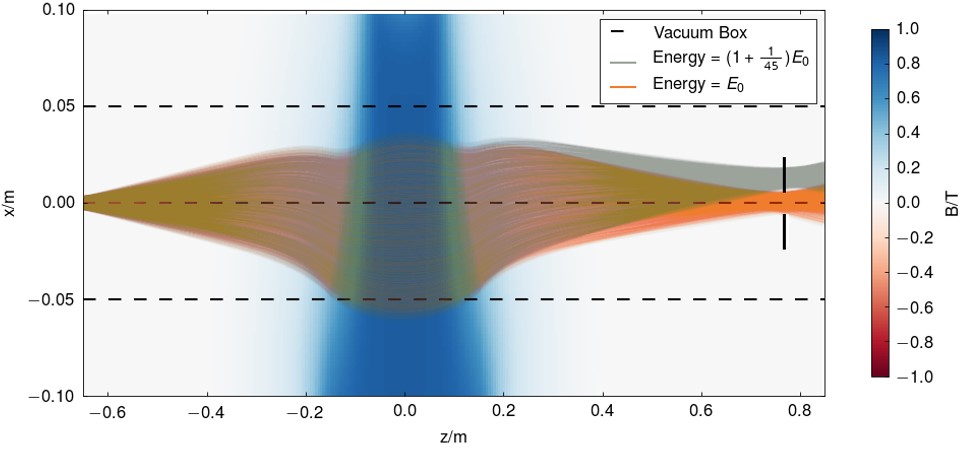

  • Energy resolution 1:626 with 1 mm slit gap and small divergence beams, 1:45 with 5 mm slit gap and large divergence beams.
  • Example Maximum Beam Energy & Particle Mass: T = 30 keV, q = 1, M = 76 A.M.U.
  • Magnet: 90° Dipole, R = 191 mm, Mass = 2 Tonnes
    • 50 mm beam height
    • 0 - 20 mm manually adjustable gap, accurate to ± 0.05 mm


Download(s)
File Type Date Details
Specification pdf Sep/15/2016 download 556.9KB

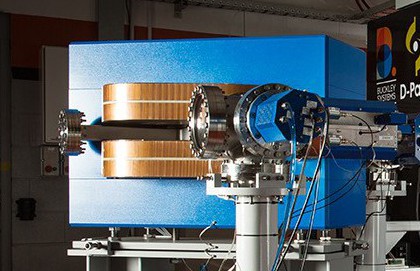

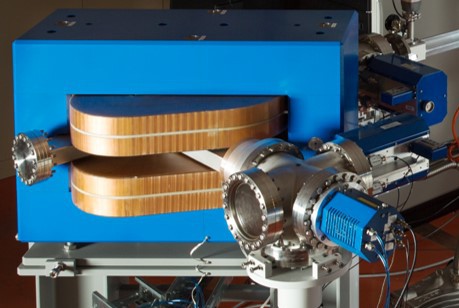

Gallery



For more information, or to order an item please contact us at info@d-pace.com

D-pace engineering and drafting teams are fully dedicated to particle beam and accelerator systems including magnets, vacuum chambers and support structures.
