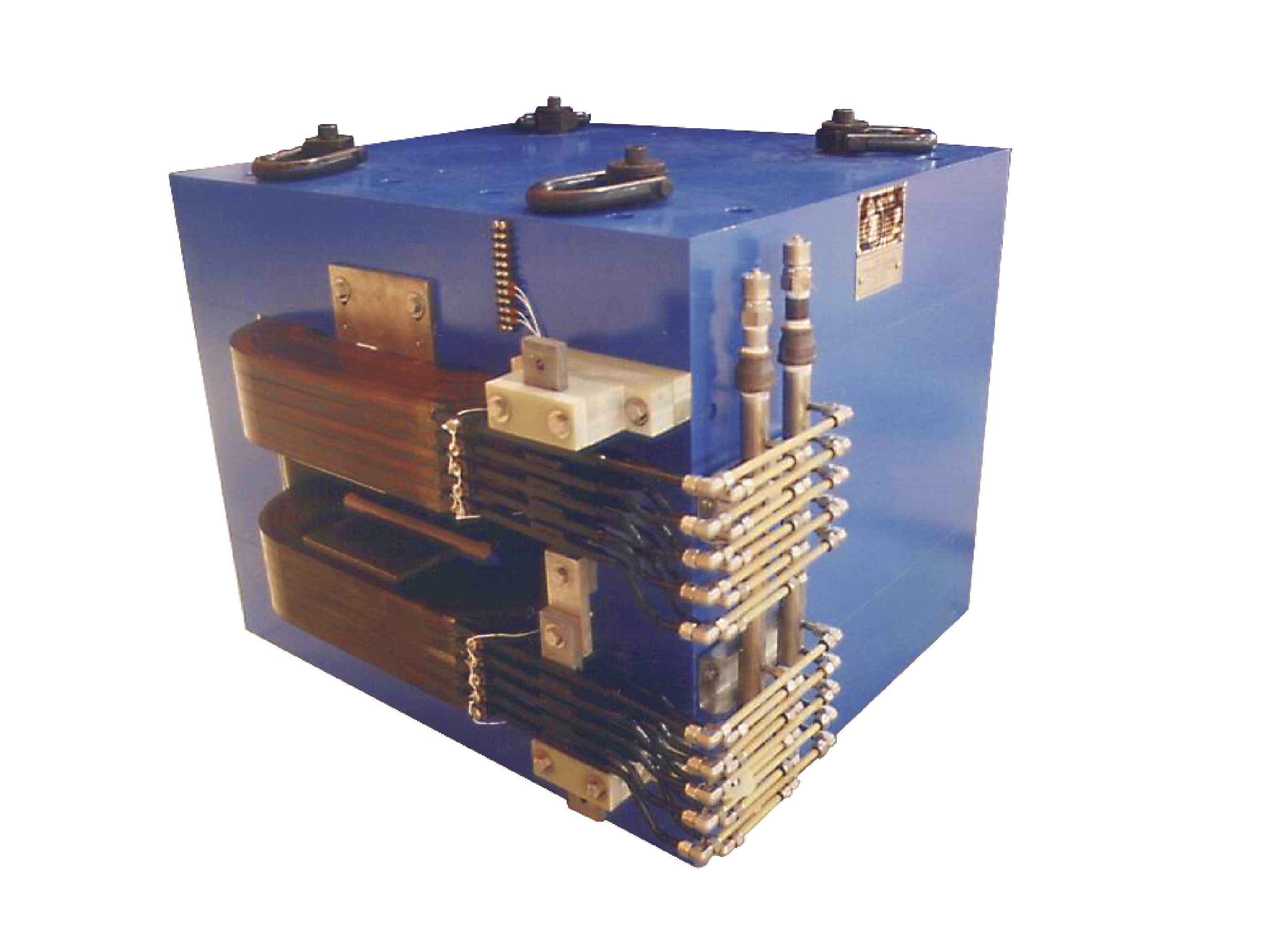

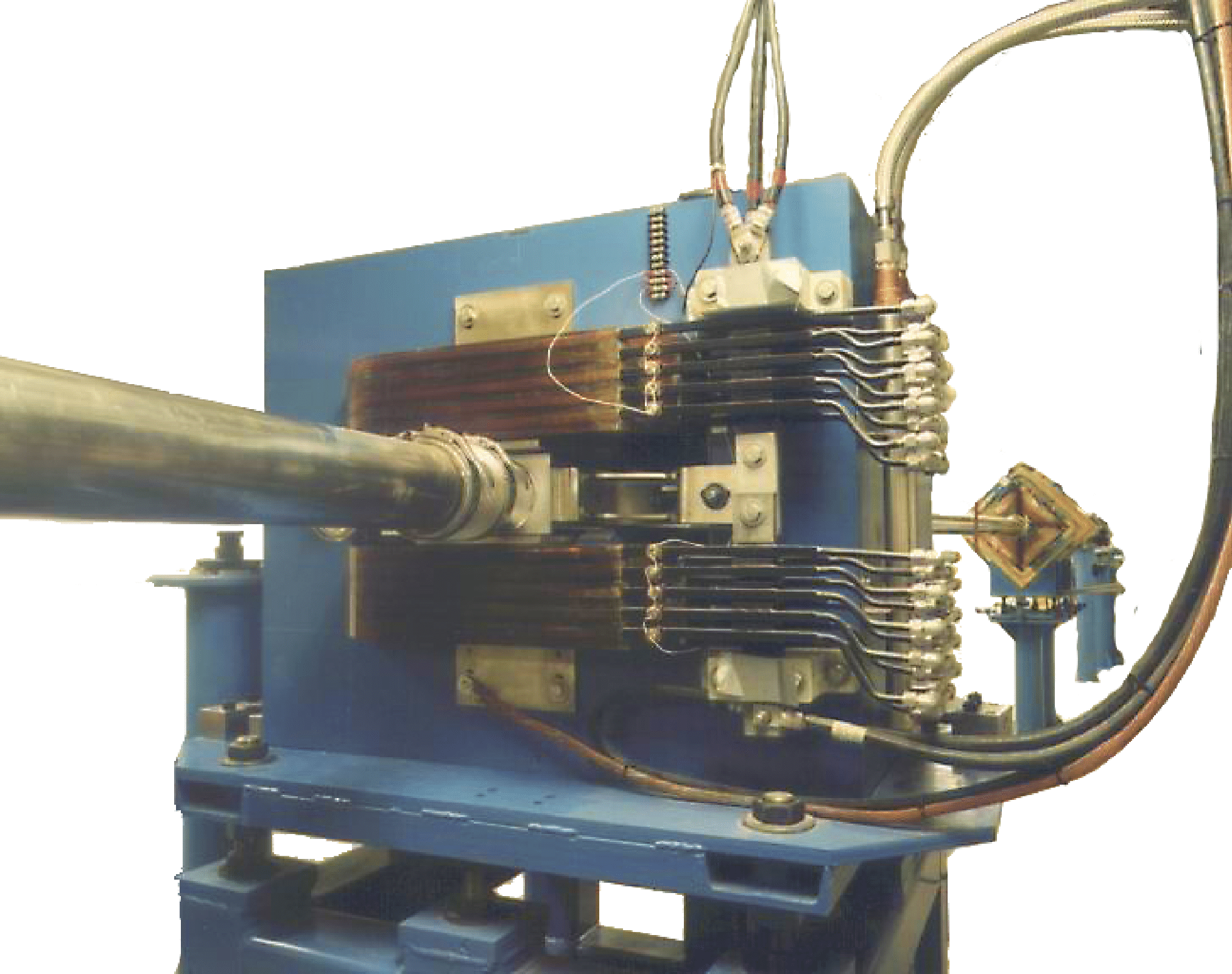

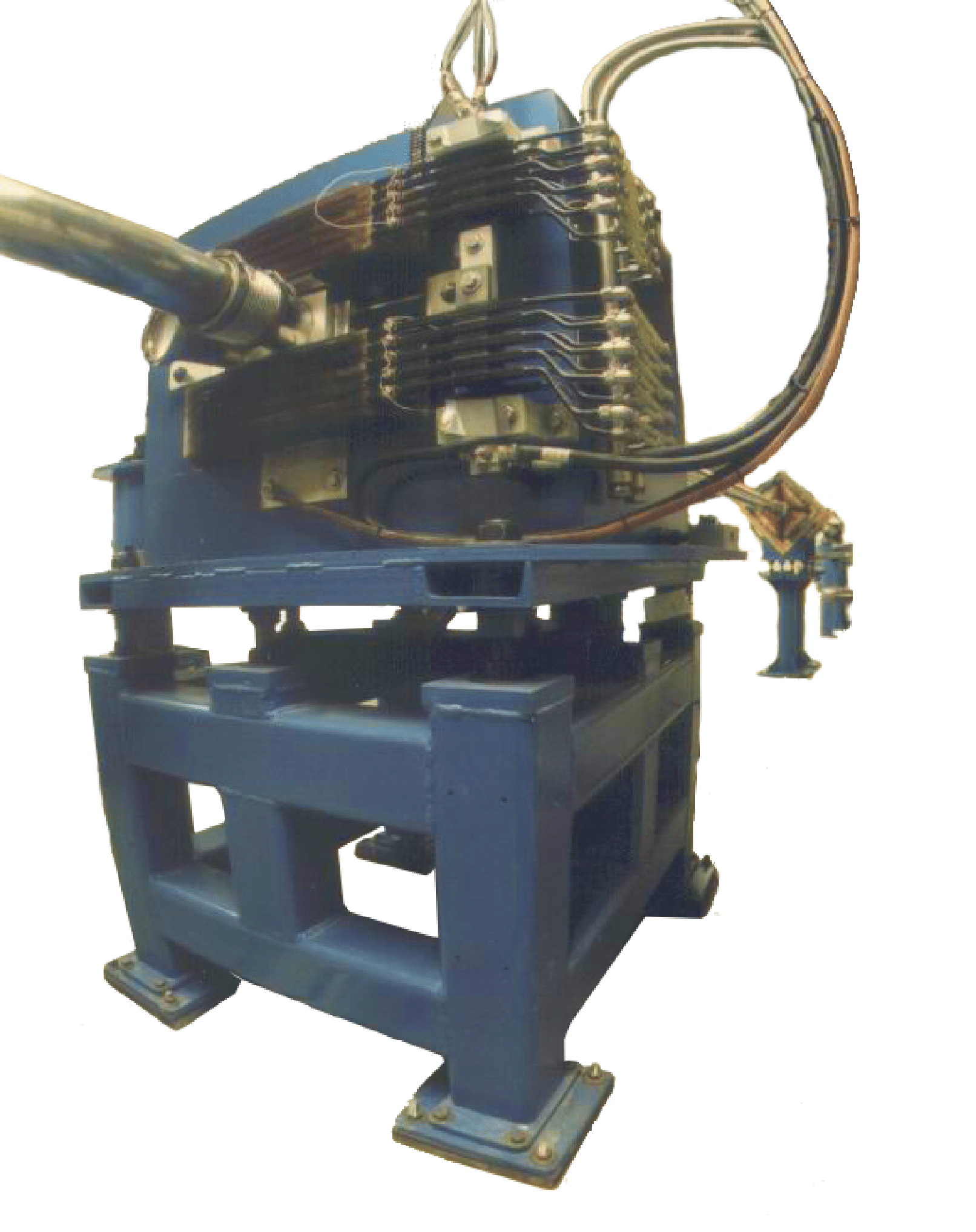

TRIUMF/ISAC 15º Dipole Magnet
- Model #: DM-100.15
- Last modification: Jun/30/2020
contact us about this product
Specifications
|
Bend Angle: |
15 Degrees |
|
Energy/Particle: |
500 MeV, Proton |
|
Maximum Field: |
10.241 kG |
|
Effective Length: |
37.477 inches |
|
Pole Gap: |
4.000 inches |
|
Pole Shape: |
Rectangular Pole, No entrance or exit curvatures |
|
Coils: |
Hollow Tube, Copper Conductor |
|
Weight: |
11,000 lbs |
TRIUMF-licenced technology1
- Technology licensed from TRIUMF for world-wide distribution.
