1:100 Resolution Spectrometer, 45° Bender

  • Model #: SPEC-100.45
  • Last modification: Nov/28/2017


contact us about this product
%title% %title% %title%

Overview

The D-Pace 1:100 Energy Spectrometer magnet has been designed for resolving proton beams with kinetic energy from 0.5 MeV to 11 MeV, while bending through an angle of 45°.


Features
Magnet Type: Dipole
Bend Angle: 45°
Magnet Gap: 40 mm
Maximum Field: 1.2 T
Effective Length: 314.2 mm
Radius of Curvature: 400 mm
Entrance Pole Face Angle:  -36.0784°
Exit Pole Face Angle: -36.0784°
Pole Profile: Rowgowski
Max. Current: 120 A
Max. Voltage: 30 V
Cooling: Water
Entrance, Exit, & Thru Flange:  KF50

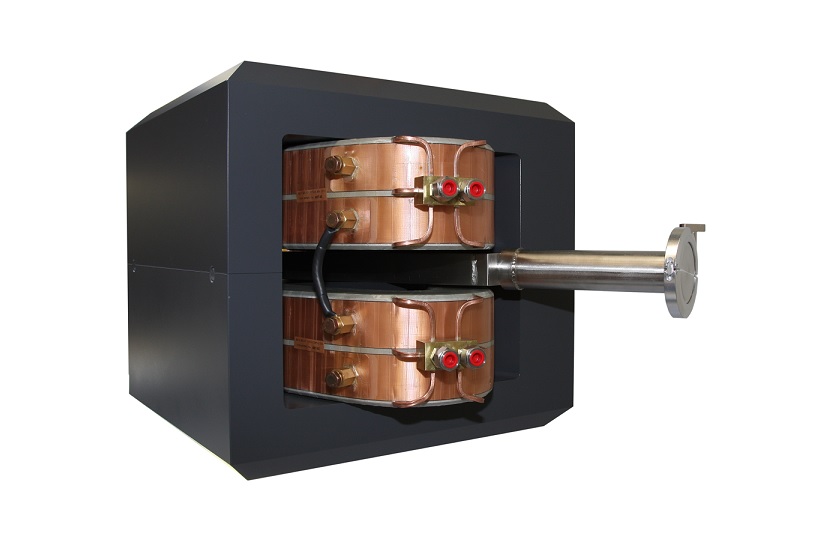

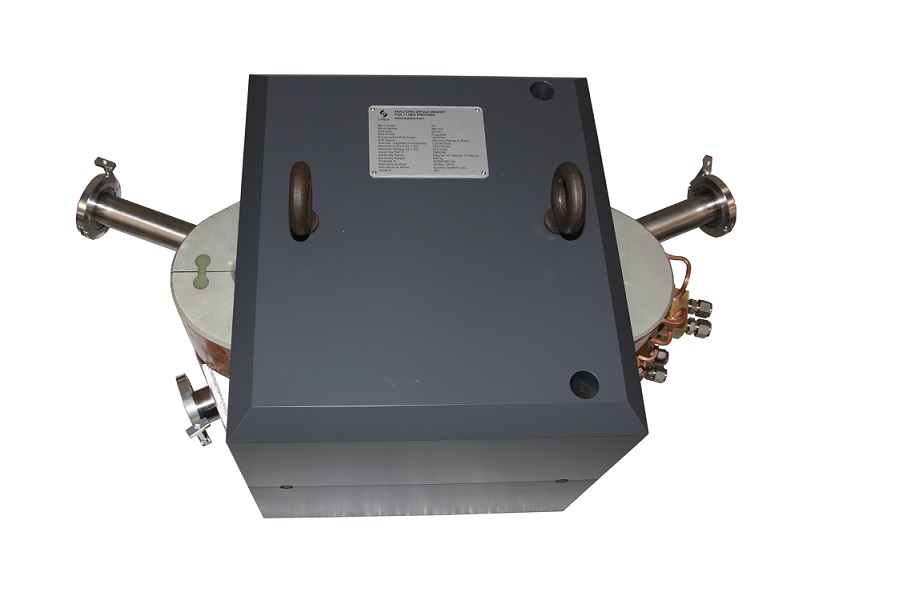

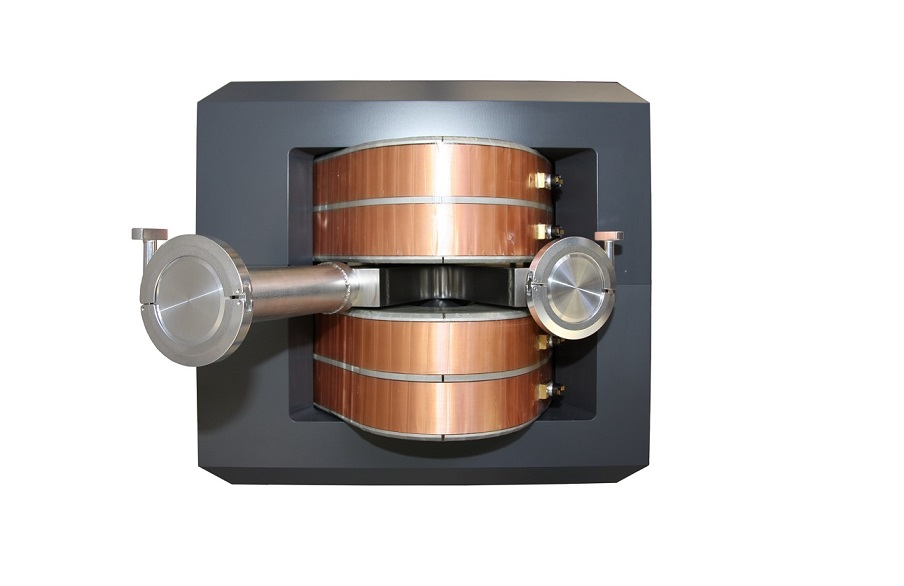

Gallery



For more information, or to order an item please contact us at info@d-pace.com

D-pace engineering and drafting teams are fully dedicated to particle beam and accelerator systems including magnets, vacuum chambers and support structures.
