90° Bender Magnet

  • Model #: DM-45.90
  • Last modification: Jun/30/2020


contact us about this product
%title% %title% %title%

Overview
  • Magnet Type: Dipole
  • Bend Angle: 90°
  • Clear Gap: 45 mm
  • Effective Length: 296.1 mm
  • Mass: 168 kg
  • Pole Tip Magnetic Field @ Max Current: 0.1858 T
  • Nominal Current: 4.26 A
  • Nominal Voltage: 15.7 V
  • Air cooled
  • Thermal Swtiches Activation Temperature: 82°C

Features

D-Pace's standard 90° Bend dipole magnet for cahrged particles can be purchased as:

  1. magnet only
  2. with SS316 vacuum box
  3. with stand included
  4. with power supply

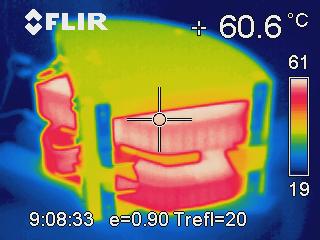

Gallery



For more information, or to order an item please contact us at info@d-pace.com

D-Pace engineering and drafting teams are fully dedicated to particle beam and accelerator systems including magnets, vacuum chambers and support structures.
