4-Port Target Selector

  • Model #: DM-14.4X18
  • Last modification: Nov/28/2017
  • Downloads


contact us about this product
%title% %title% %title%

Overview

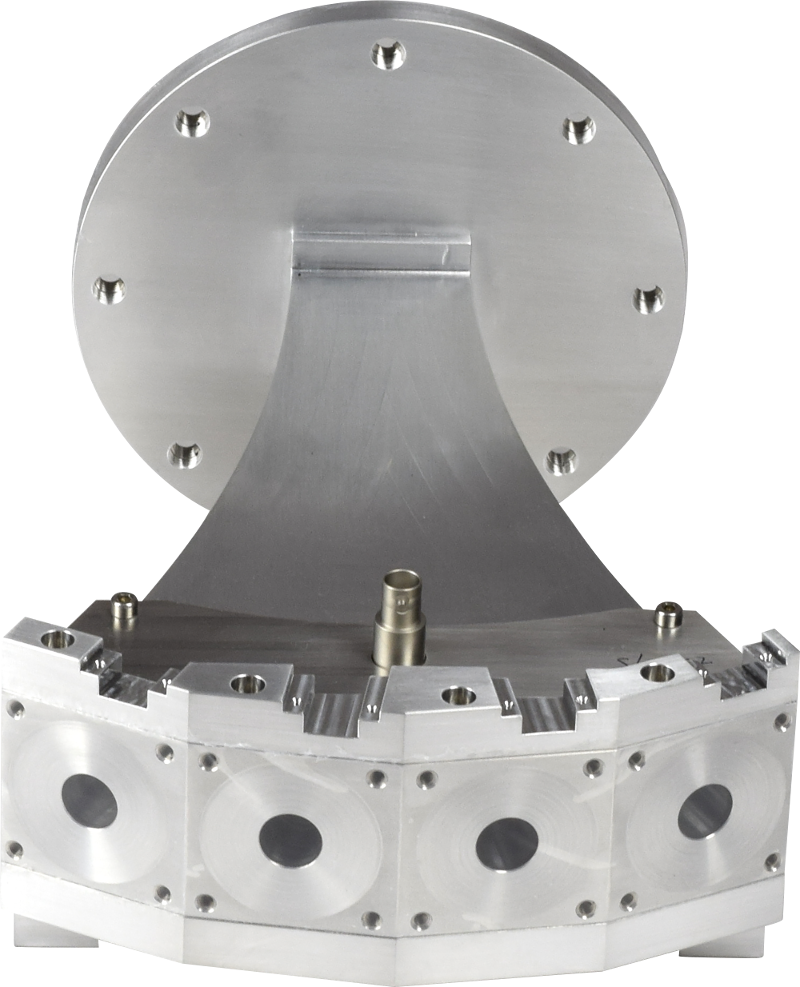

A dipole magnet designed to direct a charged particle beam to one of four output directions. Intended for use with four targets, the device operates as a magnetic target selector. Included in the output of the vacuum chamber is a beam collimator, with a single beam current readback.


Features
  • Magnet Type: Dipole
  • Bend Angles: ±27°, ±9°
  • Bend Radaii: 466.9 mm, 1400.6 mm
  • Clear Gap: 14.5 mm
  • Effective Length: 220 mm
  • Mass: 172 kg
  • Max Current: 130 A
  • Max Voltage: 22.1 V
  • Max Resistance: 0.17 Ohms
  • Pole Tip Magnetic Field @ Max Current: 1.1 T
  • Magnet Inductance: 90 mH
  • Cooling Water Flow: 3.0 L/min
  • Inlet Water Temperature: < 20°C
  • Water Pressure Drop: 20.5 kPa
  • ΔT @ Max Current: ~24°C
  • Thermal Switch Activation Temperature: 70°C


Download(s)
File Type Date Details
Specification pdf Jan/19/2017 download 457KB
Drawing pdf Jan/19/2017 download 358.2KB

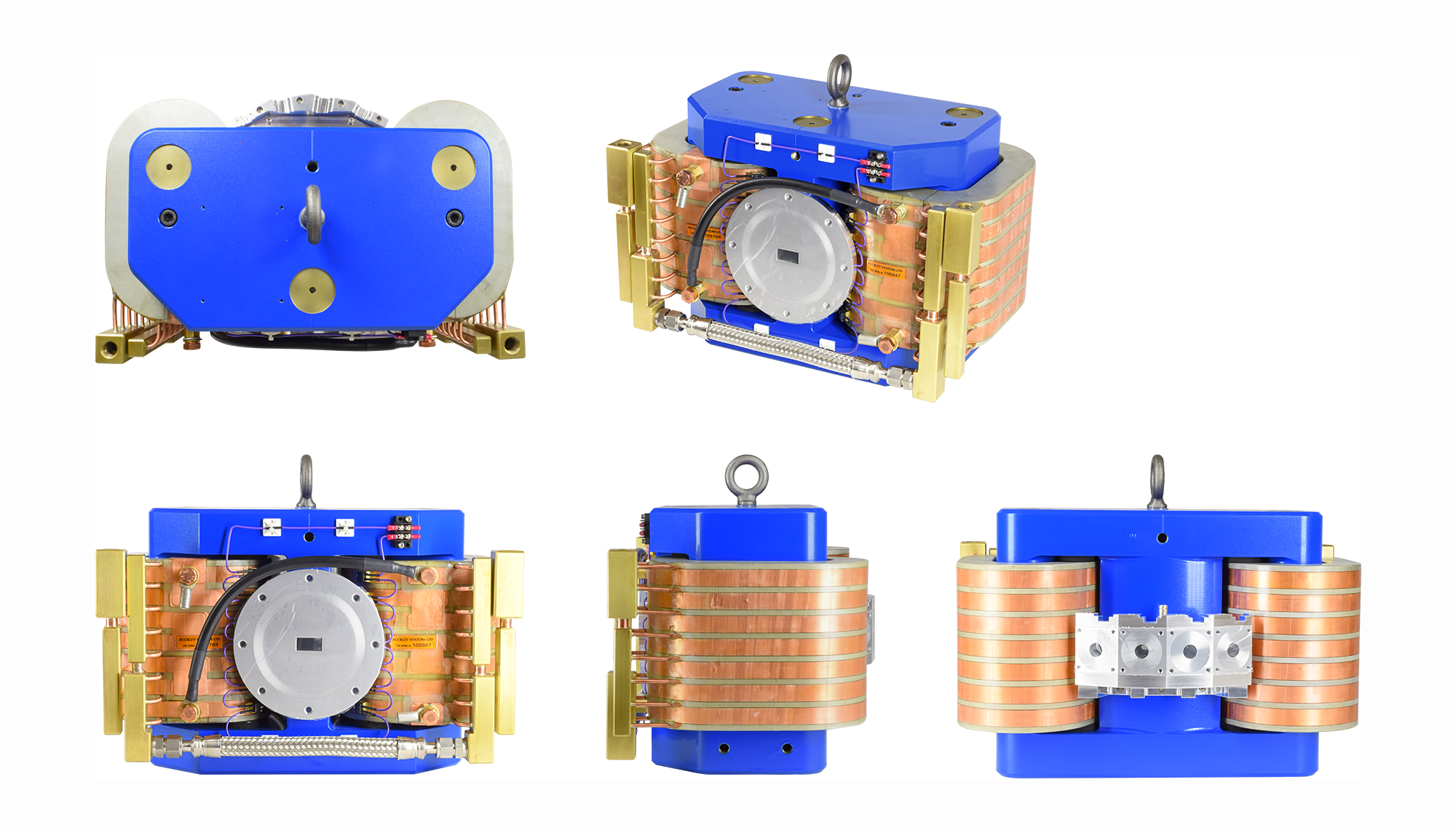

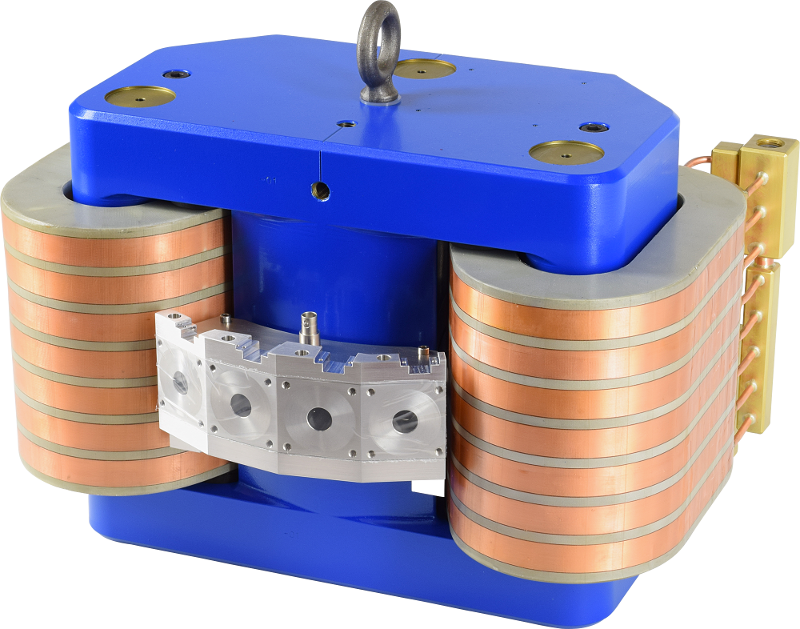

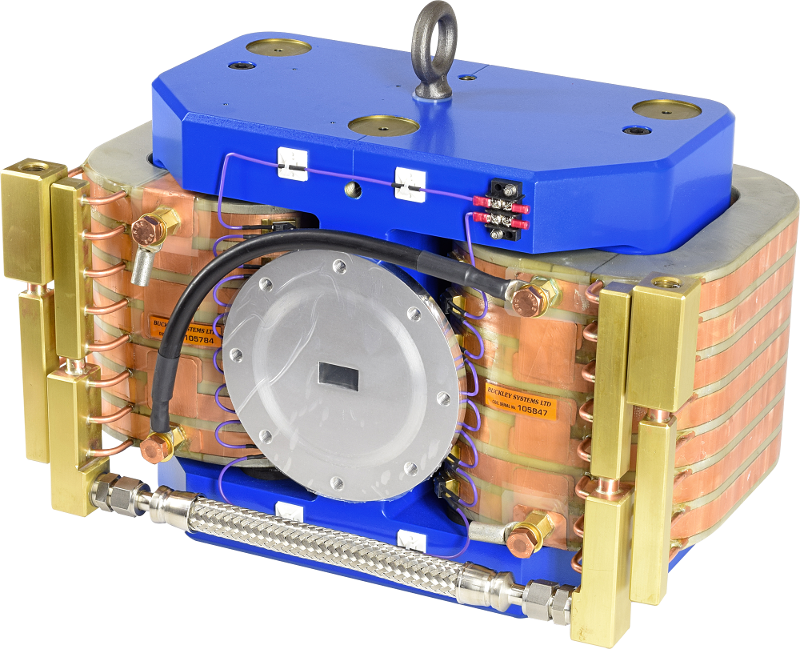

Gallery



For more information, or to order an item please contact us at info@d-pace.com

D-pace engineering and drafting teams are fully dedicated to particle beam and accelerator systems including magnets, vacuum chambers and support structures.
