5-Port Target Selector

  • Model #: DM-14.5X13
  • Last modification: Jul/19/2018
  • Downloads


contact us about this product
%title% %title% %title%

Overview

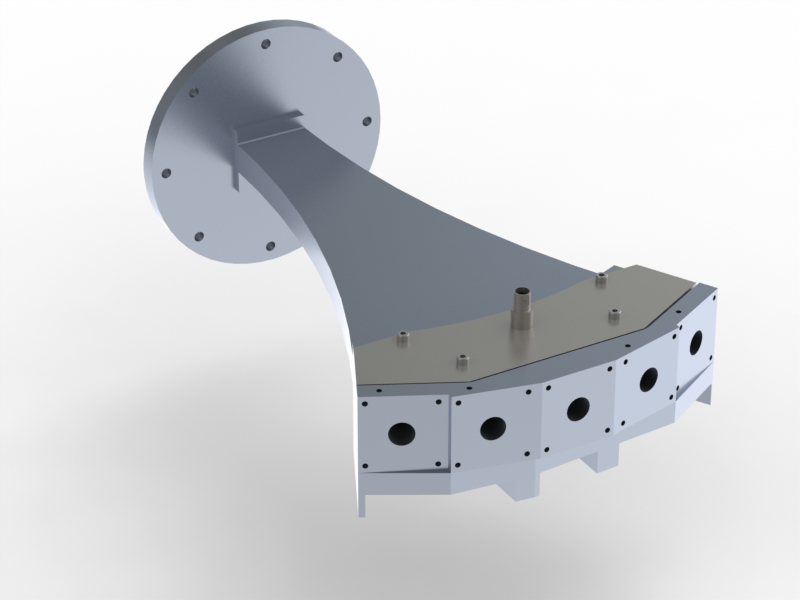

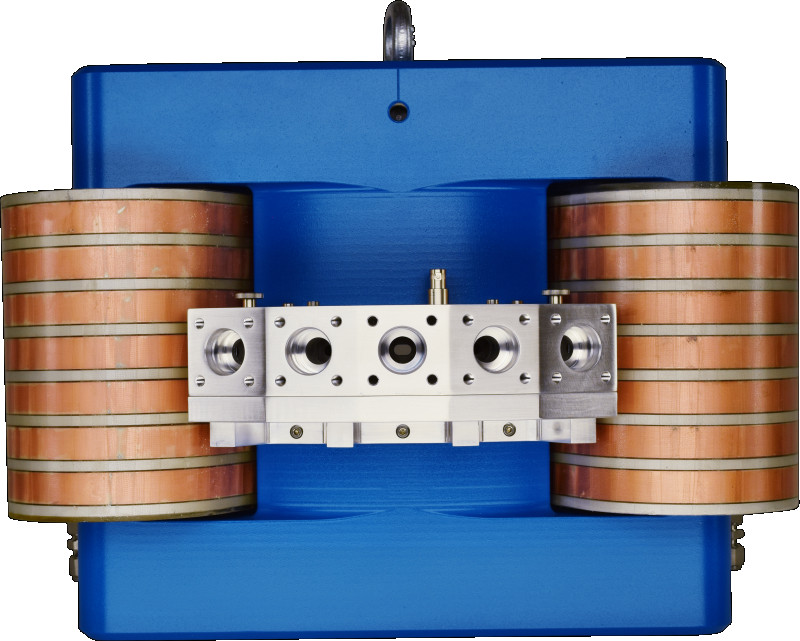

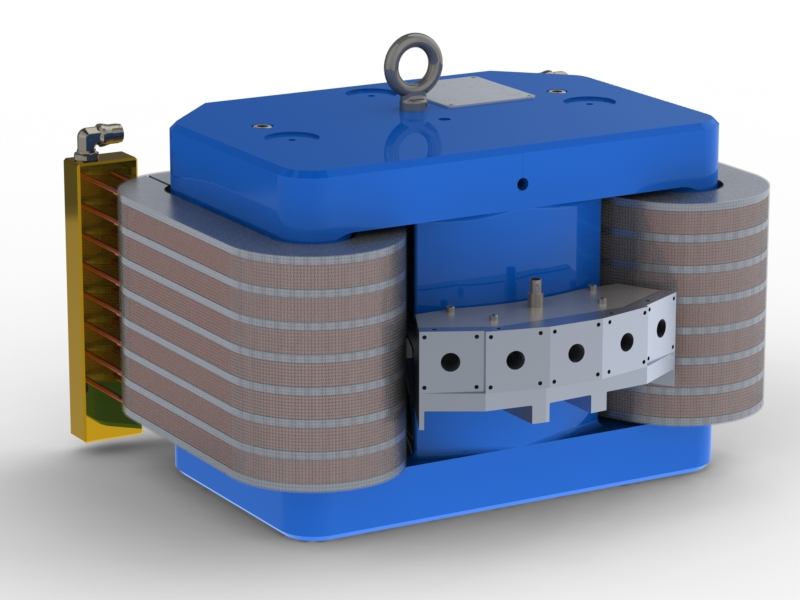

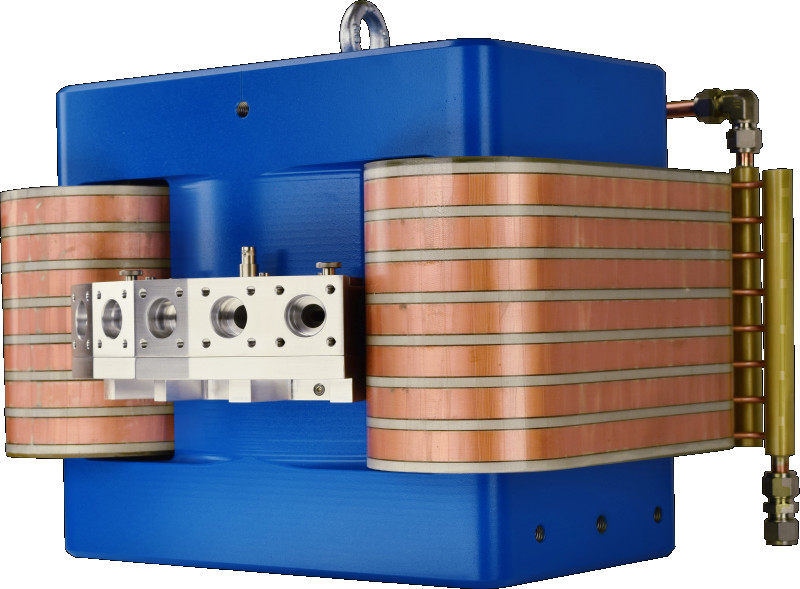

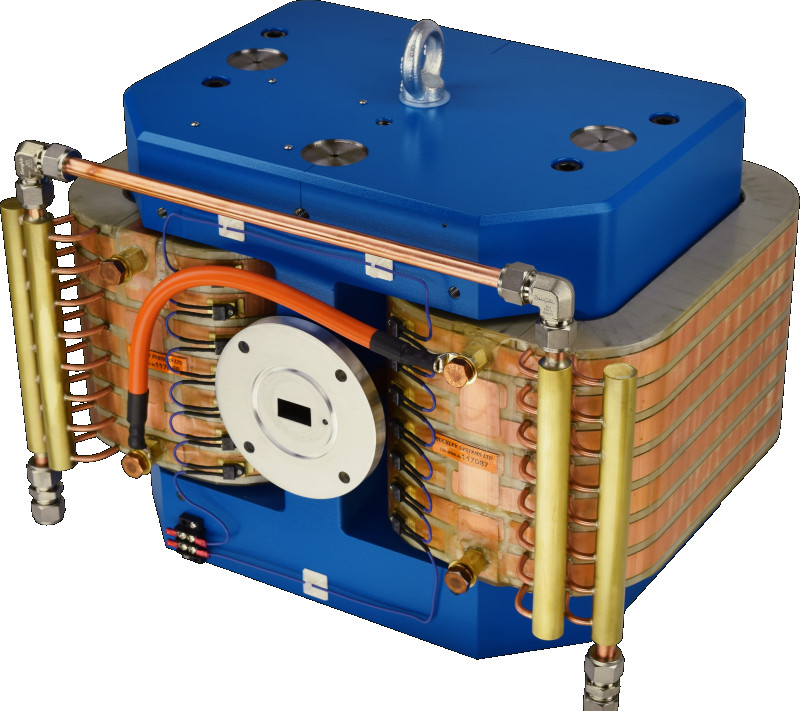

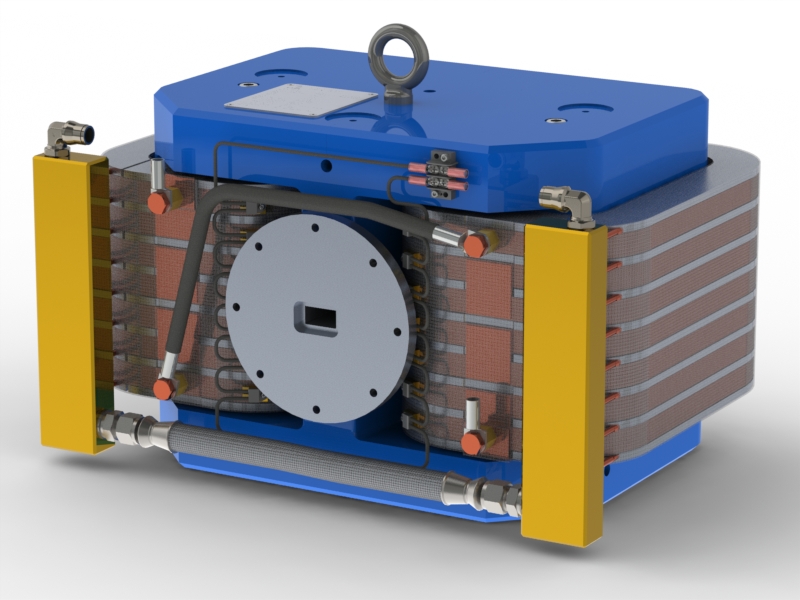

A dipole magnet designed to direct a charged particle beam to one of five output directions. Intended for use with five targets, the device operates as a magnetic target selector. Included in the output of the vacuum chamber is a beam collimator, with a single beam current readback.


Features
  • Magnet Type: Dipole
  • Bend Angles: ±27°, ±13.5°, 0°
  • Bend Radaii: 636.6 mm, 1273.2 mm
  • Clear Gap: 14.5 mm
  • Effective Length: 300 mm
  • Mass: 273 kg
  • Max Current: 130 A
  • Max Voltage: 28 V
  • Pole Tip Magnetic Field @ Max Current: 1.1 T
  • Cooling Water Flow: 3.0 L/min
  • Inlet Water Temperature: < 20°C
  • Thermal Switch Activation Temperature: 70°C


Download(s)
File Type Date Details
Specification pdf Feb/8/2017 download 478.9KB



For more information, or to order an item please contact us at info@d-pace.com
