BNCT-50k

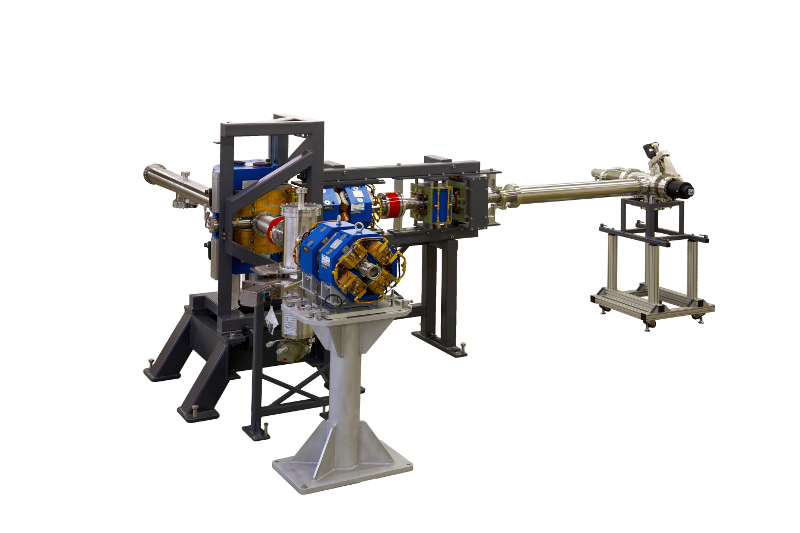

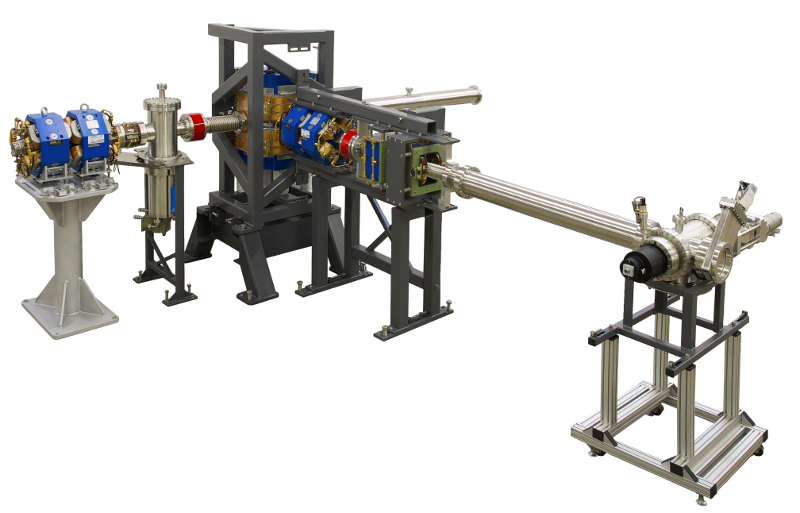

High Energy Beamline for BNCT
The D-Pace High Energy Beam Transport (HEBT) beamline has been designed for the transport of 50 kW proton beams (20 mA, 2.5 MeV) for Boron Neutron Capture Therapy (BNCT). Beams are transported with low losses due to large acceptance apertures throughout the system, and can be uniformly distributed on target to mitigate power density issues.The system comes complete with all stands, vacuum chambers, pumps, gauges, beampipes, bellows, power supplies, and scan function generators. Custom ion-optical and engineering modifications can also be undertaken to meet your particular beam energy, current, and power conditions.
Specifications
| Mass (Weight) | ~2950 kg |
|---|---|
| Beamline Layout | 2 m ×4 m, with 2.5 m thru |
| Beam Axis Height | 1.25 m |

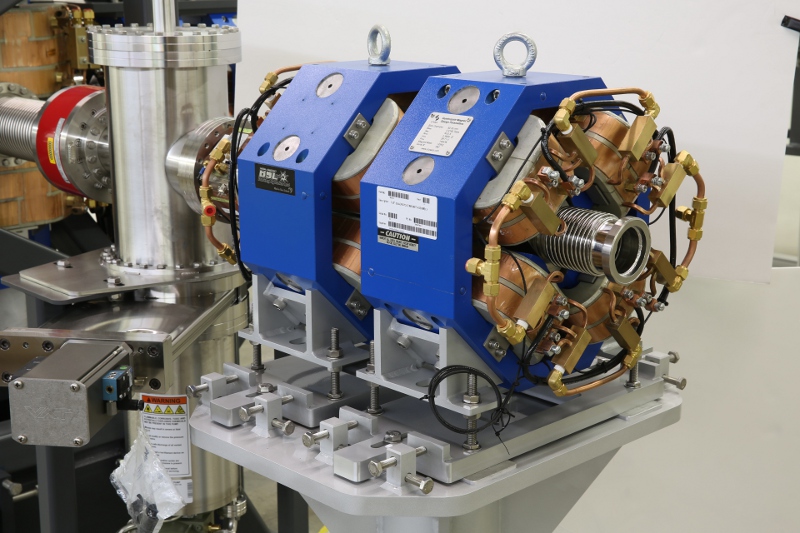

| Ion-Optical Elements | Quadrupole Doublet (two pair) |
| DC XY Steering Magnet | 90°Bending Magnet |
| AC XY Scan Magnet Pair | (with arbitrary function generators) |
| Diagnostics | Quadrupole Magnet Specifications |
| Eff | max |
| Pole-Face Entrance/Exit | Normal to beam 2120032_R1. |
