Diagnostics
D-Pace provides a range of beam diagnostics, such as emittance scanners, Faraday cups, scanning slits, and scintillators.
Searching products
Adjust filters or clear all to broaden your results.
4 families of diagnostics
Family
Beam Profilers
Optical fibre, scanning slit and scintillator beam profilers for measuring horizontal and vertical beam profiles at up to 2 kW.
- High Power Scintillator
- UniBEaM Optical Fibre Beam Profiler, 25 mm
- UniBEaM Optical Fibre Beam Profiler, 75 mm
- XY Scanning Slit Beam Profiler, 1.5 kW
Family
Emittance Scanners
Emittance scanners are one of the most valuable diagnostics tools we offer. They are essential for design validation, tuning ion sources and beamlines, and for feeding emittance and phase-space data back into beamline models.
- Emittance Scanner, 1.5 kW
- Emittance Scanner, 10 kW
- Vacuum Box, ES-4 (Dual, CF, Imperial)
- Vacuum Box, ES-4 (Dual, CF, Metric)
Family

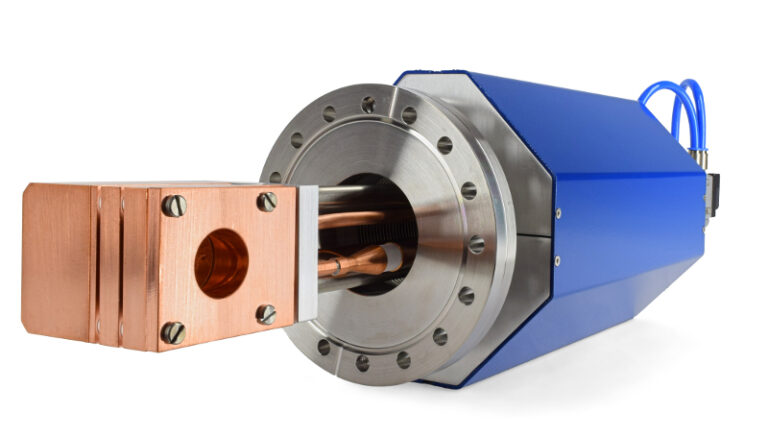

Faraday Cups
Pneumatically-actuated and stationary Faraday cups for beam current measurement. Air-cooled and water-cooled models from 50 W to 3 kW beam power.
- Faraday Cup, 1 kW
- Faraday Cup, 3 kW
- Faraday Cup, 50 W
- Faraday Cup, Fixed, 600 W
Family

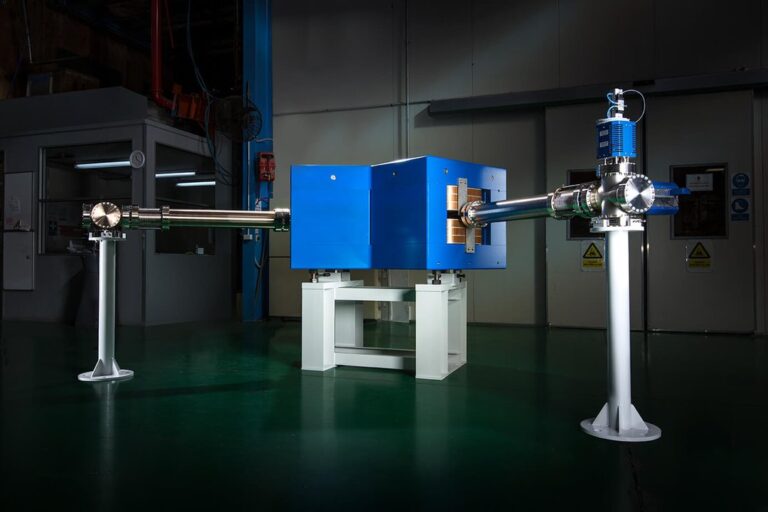

Mass Spectrometers
Resolving spectrometer magnets from 1:100 to 1:1500, separating ion beams by mass and energy to better than 1 part in 500.
- 1:100 Resolution Spectrometer, 45° Bender
- 1:1500 Resolution Spectrometer
- 1:500 Resolution Spectrometer
Related services
[ MODELLING & SIMULATION ]
Modeling and Simulation Services
Reduce technical risk and accelerate development with D-Pace's advanced modelling and simulation capabilities. We combine physics-based simulation tools with real-world testing expertise to evaluate designs, optimize performance, and provide critical insights before committing to fabrication or experimental validation.
Model My Application
[ EXPERT CONSULTATION ]
Beam Characterization
Need to better understand your beam? D-Pace can help. Our team provides beam characterization services at your facility or at the D-Pace Ion Source Research Center (DISC), using advanced diagnostic tools and fully equipped test stands. We also offer rental of specialized equipment, including Allison-type emittance scanners, enabling you to perform measurements and validation work independently.
Learn More
[ EXPERT CONSULTATION ]
Engineering & System Integration Services
Access specialized engineering expertise for ion source and accelerator systems. D-Pace provides custom design, integration, and development services across mechanical, electrical, vacuum, controls, instrumentation, and high-voltage technologies.
Talk to an Expert
