Faraday Cups
Pneumatically-actuated and stationary Faraday cups for beam current measurement. Air-cooled and water-cooled models from 50 W to 3 kW beam power.
| FC-25.1K View details ↓ | FC-25.3k View details ↓ | FC-50.50 View details ↓ | FC-32.600.F View details ↓ | |
|---|---|---|---|---|
| Max. Beam Power | 1000 W | 3 kW | 50 W | 600 W |
| Collimator I.D. | 25 mm | 25 mm | 50 mm | 32 mm |
| Flange | 6” Con Flat (152 mm O.D.) | 6” Con Flat (152 mm O.D.) | DN 150CF (O.D. 203 mm) | ISO 100F (8" CF optional) |
| Cooling | Water-cooled | Water-cooled | Air-cooled | Water-cooled |
| Actuation | Pneumatic | Pneumatic | Pneumatic | Fixed |
| Max. Bias Voltage | 500 V | 500 V | 500 V | 500 V |

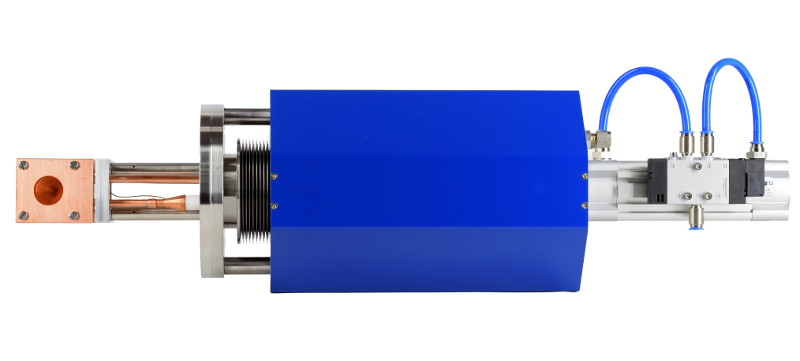

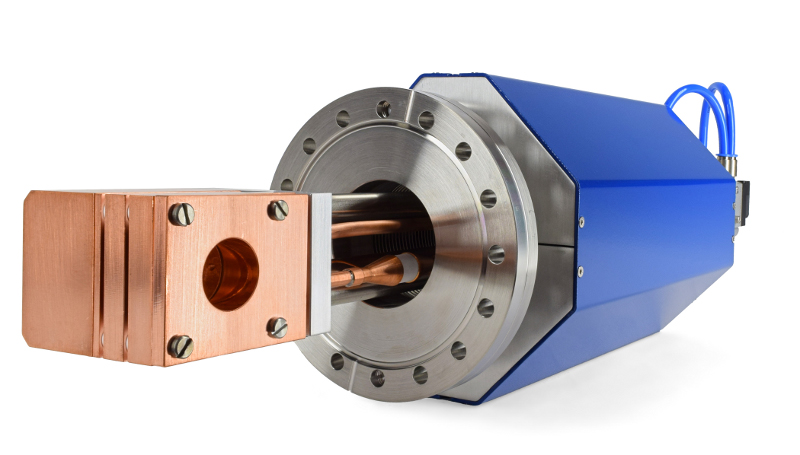

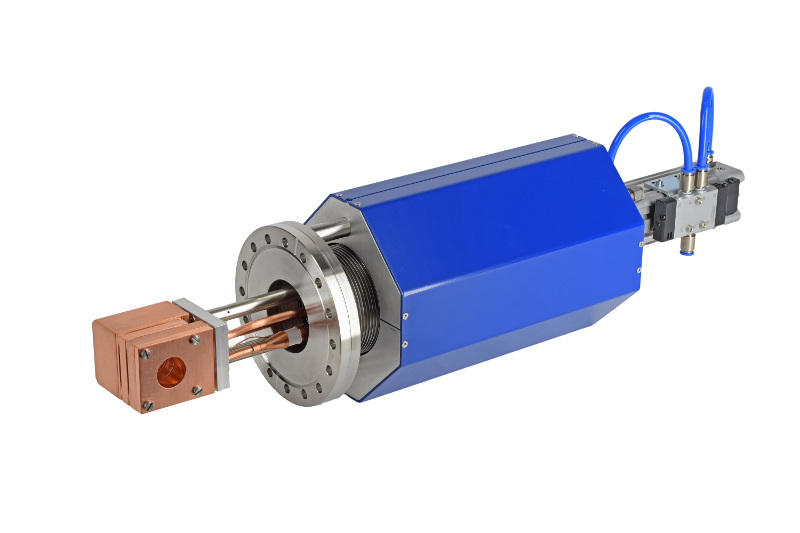

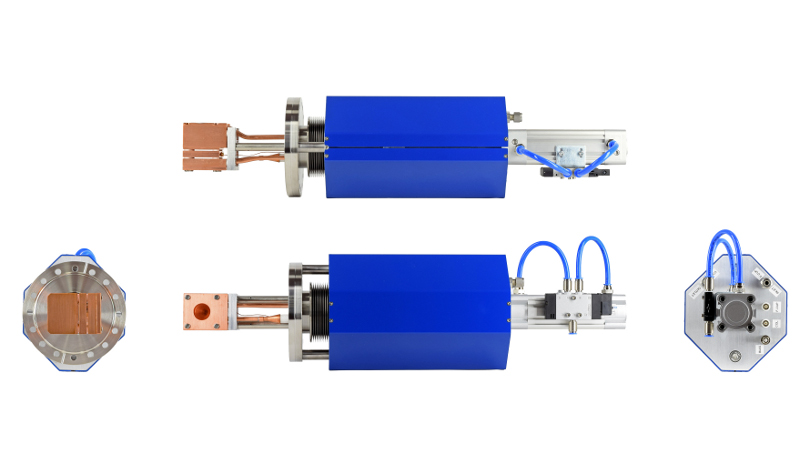

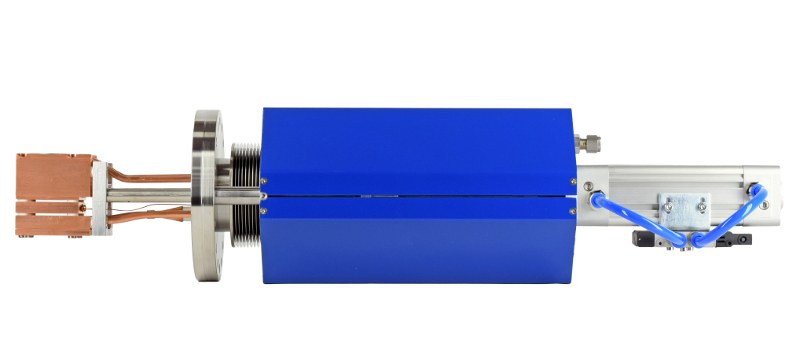

| Max. Beam Power | 1000 W |
|---|---|
| Collimator I.D. | 25 mm |
| Collimator Dimensions | 55 mm × 65 mm |
| Cup / Collimator Material | Copper |
| Flange | 6” Con Flat (152 mm O.D.) |
| Max. Travel | 79 mm |
| Limit Switches | N/O reed switch, 2-wire, |
| Cylinder Speed | One-way flow control valves |
| Pneumatic Operation | 24 V DC Solenoid |
| Pneumatic Connections | Ø6 mm tube fittings |
| Cooling Water Flow | 1 L/min |
| Inlet Temperature | 20 °C |
| Faraday Cup Signal | Isolated BNC, female |
| Collimator Signal | Isolated BNC, female |
| Bias Ring Connection | Grounded MHV, female |
| Max. Bias Voltage | 500 V |
| Beam Power | 1 kW |
| Aperture Size | 25 mm |
| Cooling | Water |
| Actuation | Pneumatic (Solenoid controlled) |
| Electron Suppression | Bias ring |
| Mounting Flange | 6" CF |

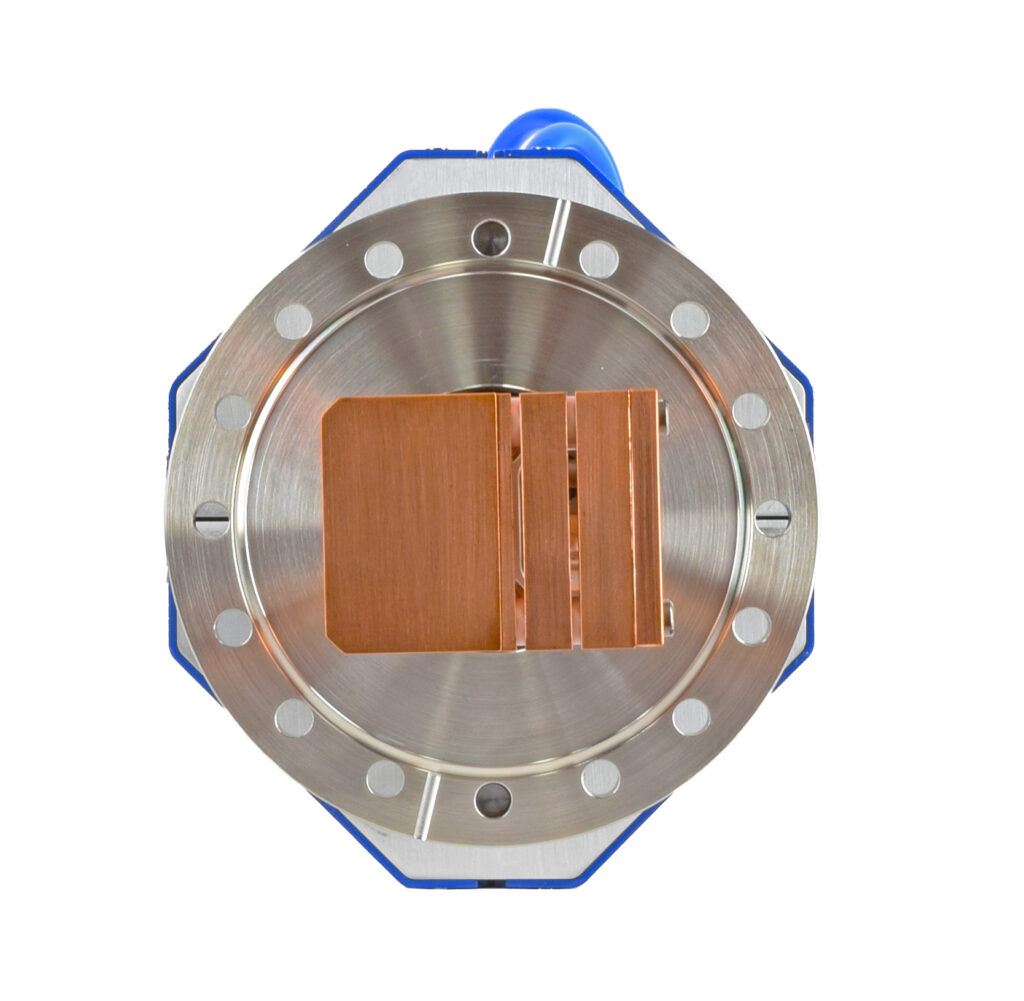

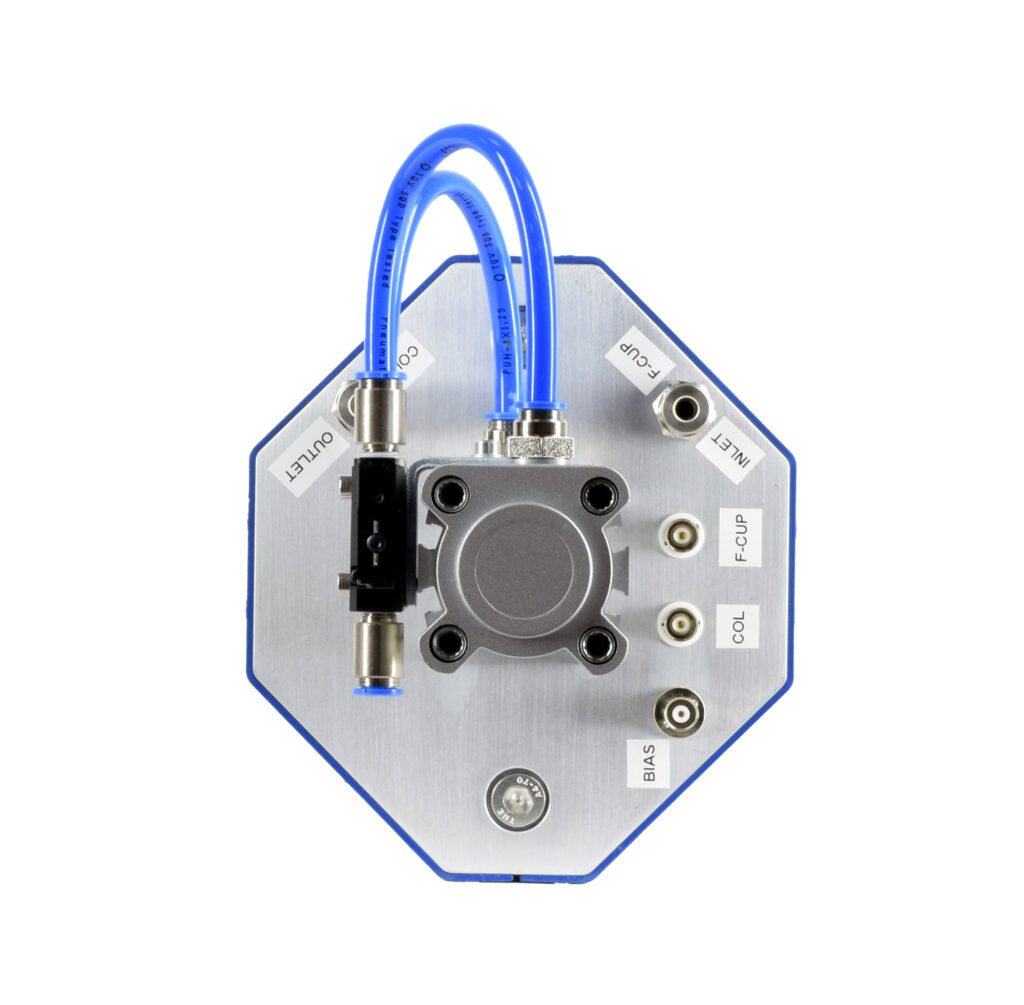

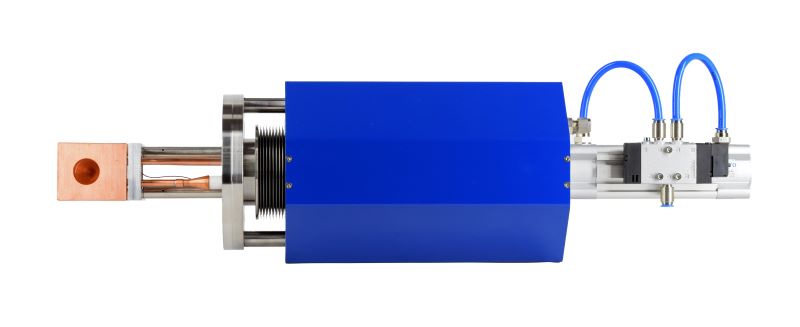

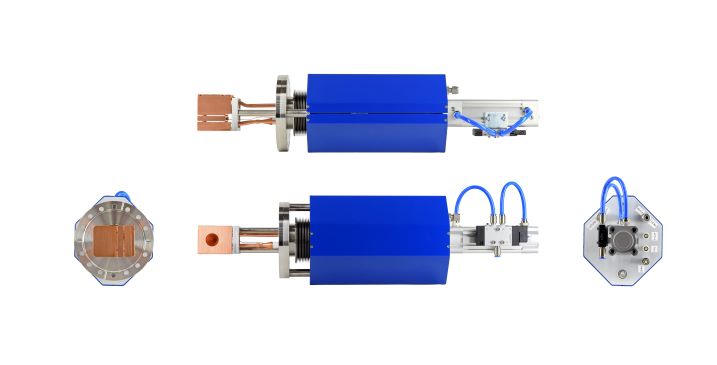

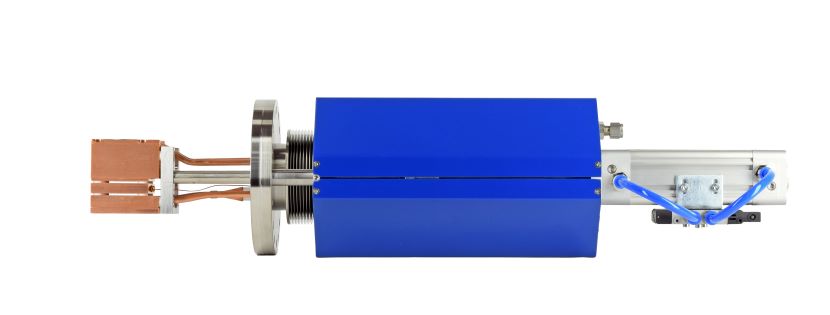

| Max. Beam Power | 3 kW |
|---|---|
| Collimator I.D. | 25 mm |
| Collimator Dimensions | 55 mm × 65 mm |
| Cup / Collimator Material | Copper |
| Flange | 6” Con Flat (152 mm O.D.) |
| Max. Travel | 79 mm |
| Limit Switches | N/O reed switch, 2-wire, |
| Cylinder Speed | One-way flow control valves |
| Pneumatic Operation | 24 V DC Solenoid |
| Pneumatic Connections | Ø1/2” (12.7 mm) tube fittings |
| Cooling Water Flow | 3 L/min |
| Inlet Temperature | 20 °C |
| Faraday Cup Signal | Isolated BNC, female |
| Collimator Signal | Isolated BNC, female |
| Bias Ring Connection | Grounded MHV, female |
| Max. Bias Voltage | 500 V |
| Beam Power | 3 kW |
| Aperture Size | 25 mm |
| Cooling | Water |
| Actuation | Pneumatic (Solenoid controlled) |
| Electron Suppression | Bias ring |
| Mounting Flange | 6" CF |

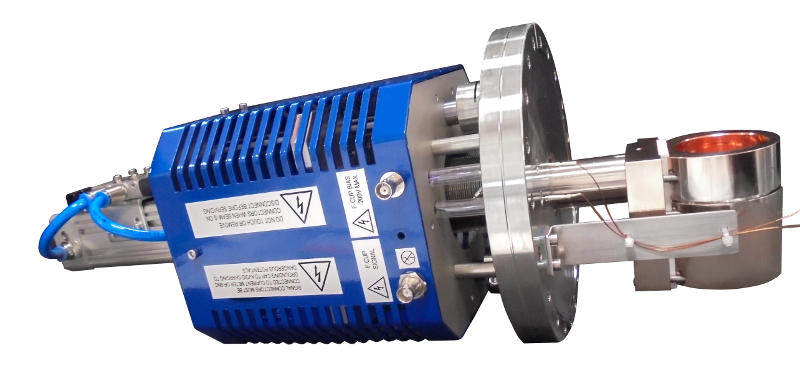

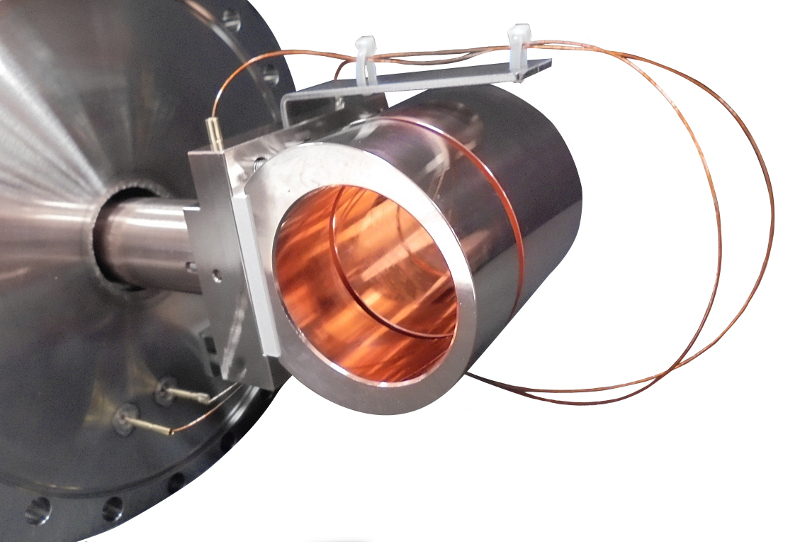

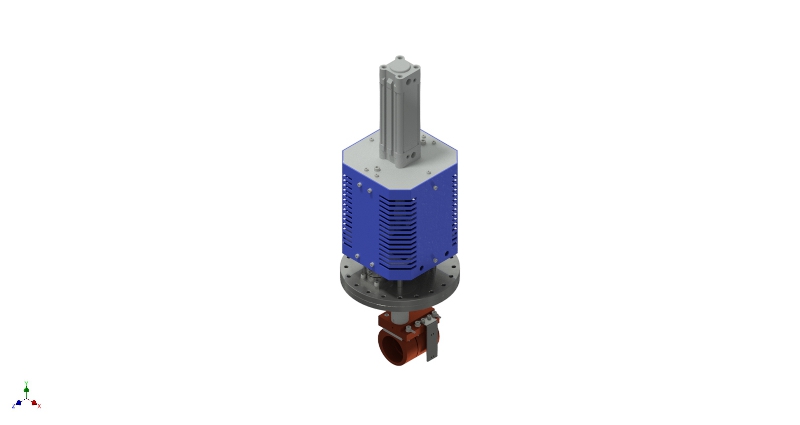

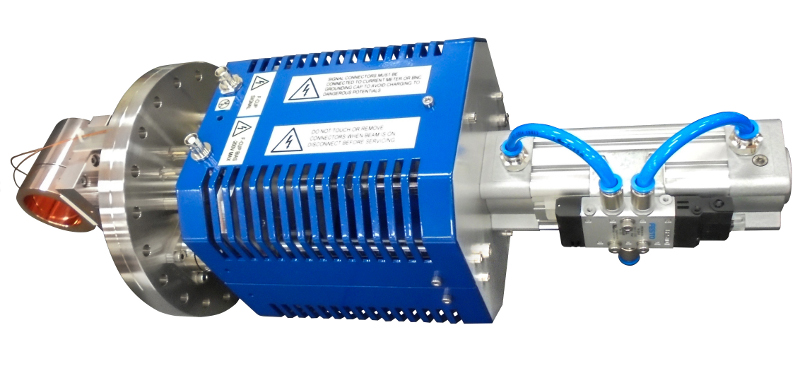

| Max. Beam Power | 50 W |
|---|---|
| Collimator I.D. | 50 mm |
| Cup / Collimator Material | Copper |
| Flange | DN 150CF (O.D. 203 mm) |
| Max. Travel | 80 mm |
| Limit Switches | N/O reed switch, 2-wire, |
| Pneumatic Operation | 3.5 –7.0 Bar |
| Faraday Cup Signal | Isolated BNC, female |
| Bias Ring Connection | Grounded MHV, female |
| Max. Bias Voltage | 500 V |
| Beam Power | 50 W |
| Aperture Size | 50 mm |
| Cooling | Air |
| Actuation | Pneumatic (Solenoid controlled) |
| Electron Suppression | Bias Ring |
| Mounting Flange | 8" CF |

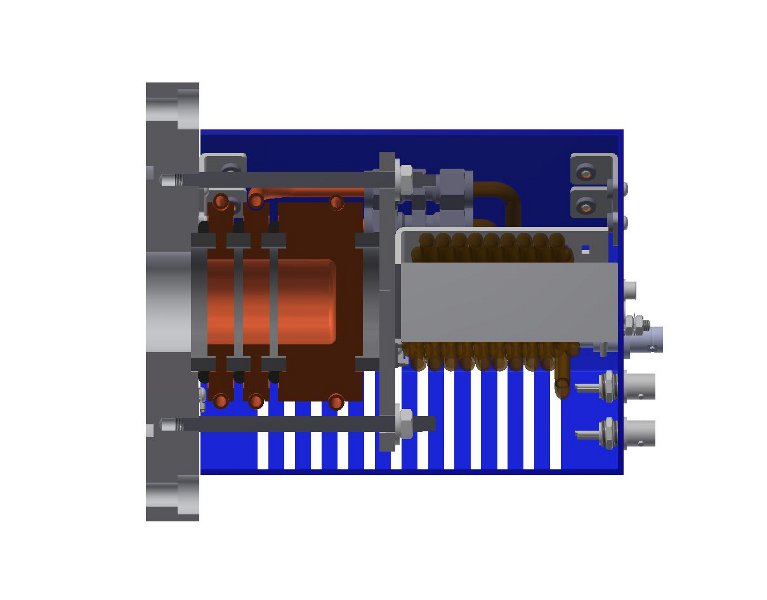

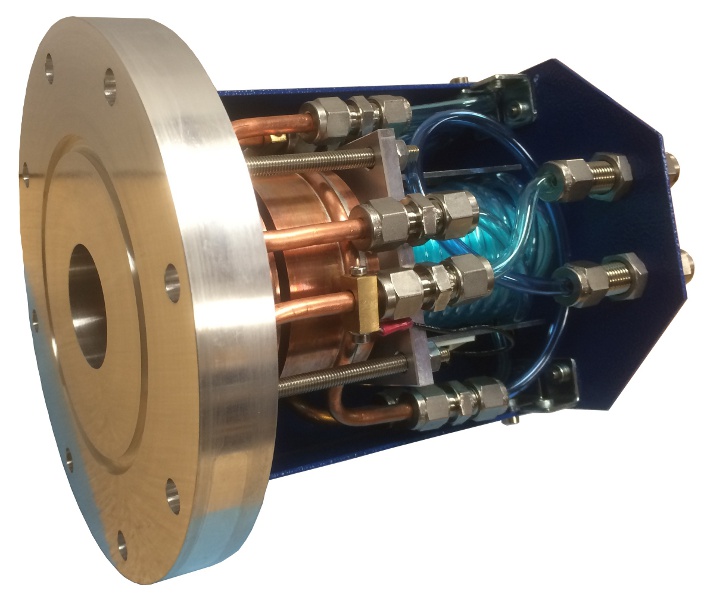

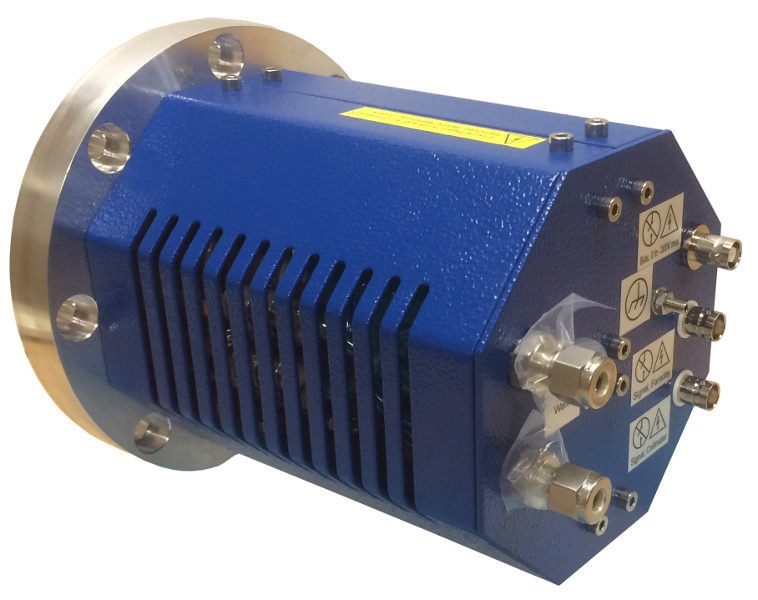

| Max. Beam Power | 600 W |
|---|---|
| Collimator I.D. | 32 mm |
| Cup / Collimator Material | Copper |
| Flange | ISO 100F (8" CF optional) |
| Faraday Cup Signal | Isolated BNC, female |
| Collimator Signal | Isolated BNC, female |
| Bias Ring Connection | Grounded MHV, female |
| Max. Bias Voltage | 500 V |
| Beam Power | 600 W |
| Aperture Size | 32 mm |
| Cooling | Water |
| Actuation | None (Fixed) |
| Electron Suppression | Bias Ring |
| Mounting Flange | ISO 100F (8" CF optional) |
Custom Configurations
D-Pace customises these designs to your beam requirements. If the listed configurations don't match your aperture, power, flange, or signal needs, we specify and manufacture bespoke variants.
