[ Dipoles ]
DM-14.4X18

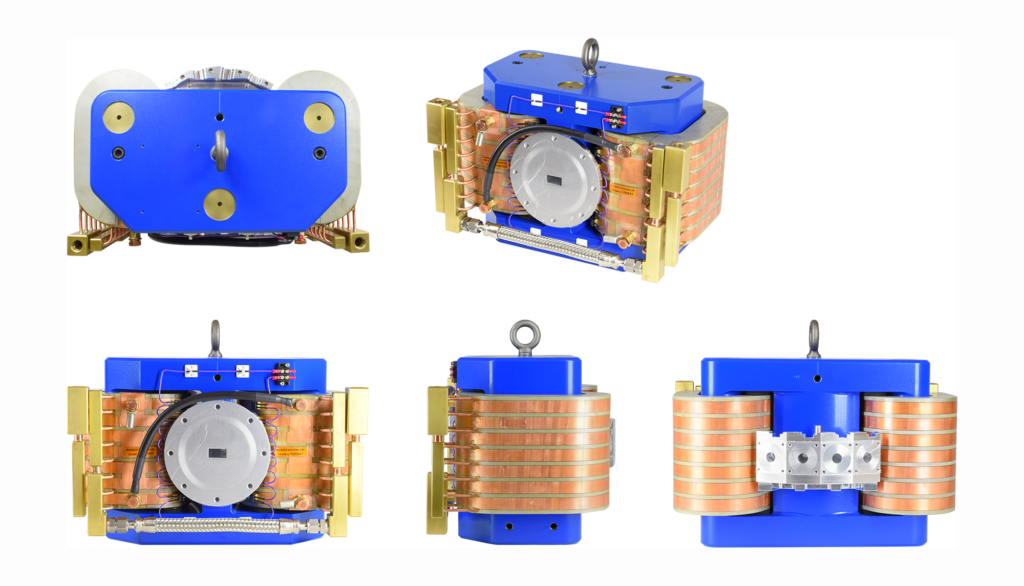

4-Port Target Selector
The D-Pace 4-Port Target Selector provides compact, flexible beam distribution to four target stations from a single beamline.
- Selectable bend angles of ±9° and ±27°
- Integrated vacuum chamber and beam collimator
- Beam-current readback for monitoring
- Compact solution for multi-target facilities
Specifications
| Bend Angles | ±9°, ±27° |
|---|---|
| Cooling water Flow | > 3.0 L/min |
| Connections | Ø12 mm tube fittings |
| Max Current | 130 A |
| Max Voltage | 22.1 V |
| Pole Tip Magnetic Field | 1.1 T |
| Effective Length | 220 mm |
| Gap Width | 14.5 mm |
