[ DM-14.5X13 ]
5-Port Target Selector
Magnetic target selector with 5 target ports, protection collimator and beam readback, for 18 Me V protons.
[ Dipoles ]

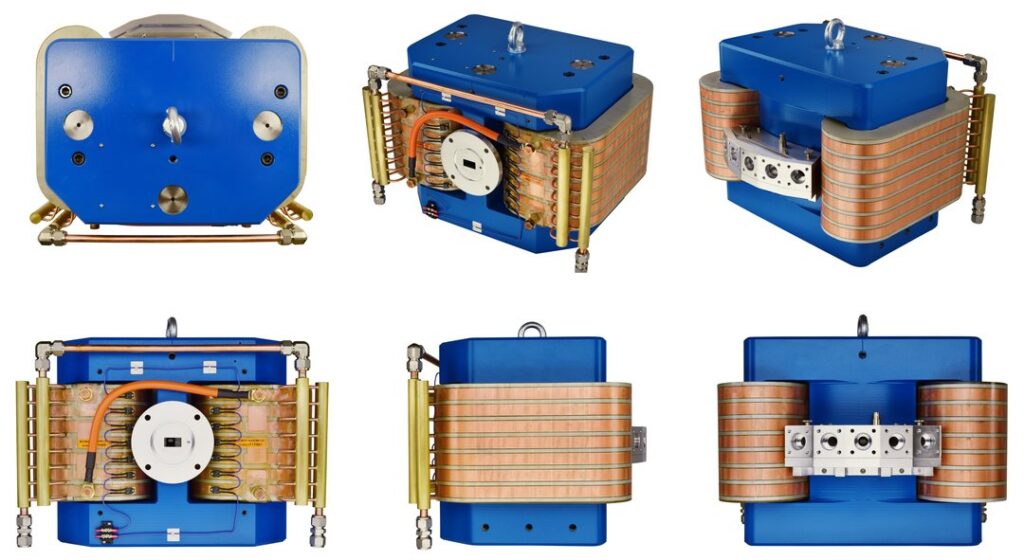

DM-14.5X13
5-Port Target Selector
The D-Pace 5-Port Target Selector provides flexible beam distribution to five target stations from a single beamline.
- Bend angles of ±27°, ±13.5°, and 0°
- Integrated vacuum chamber and beam collimator
- Single beam-current readback
- Compact dipole magnet for multi-target facilities
Specifications
| Bend Angles | ±27°, ±13.5°, 0° |
|---|---|
| Cooling Water Flow | > 3.0 L/min |
| Connections | 12 mm O.D. tube fittings |
| Max Current | 130 A |
| Max Voltage | 28 V |
| Effective Length | 300 mm |
| Pole Tip Magnetic Field | 1.24 T |
| Gap Width | 14.5 mm |
