DM-45.90

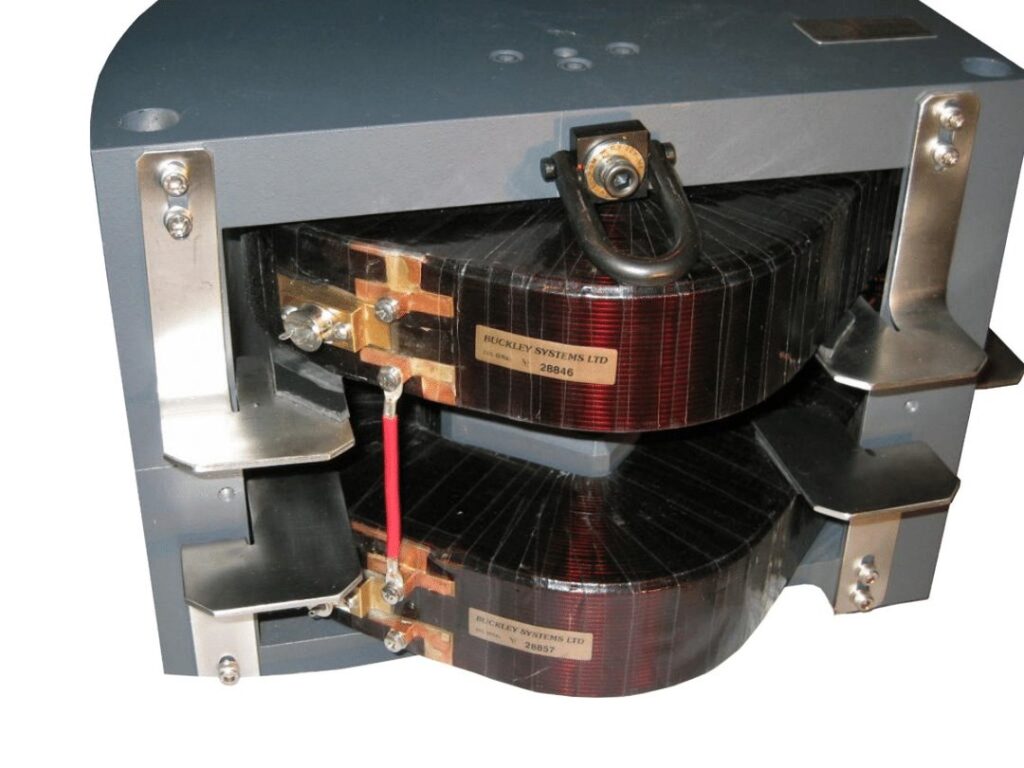

90° Bender Magnet
The D-Pace 90° Bender Magnet is an air-cooled dipole magnet designed to bend and direct charged-particle beams through a 90° angle.
- 45 mm clear gap
- Maximum pole-tip magnetic field of 0.186 T

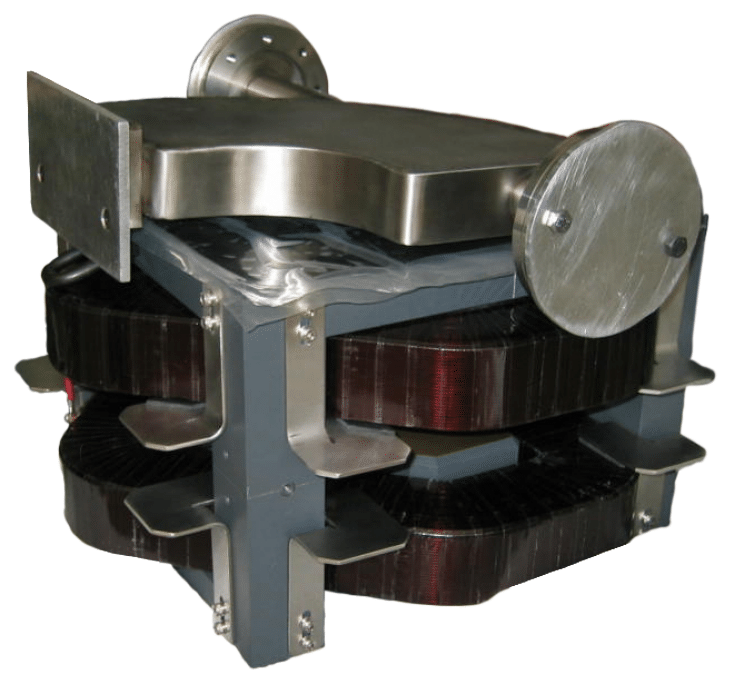

- Available with a vacuum chamber, support stand and power supply
- Compact, air-cooled design
Specifications
| Bend Angle | 90 ° |
|---|---|
| Nominal Current | 4.26 A |
| Nominal Voltage | 15.7 V |
| Pole Tip Magnetic Field | 0.1858 T |
| Effective Length | 296.1 mm |
| Gap Width | 45 mm |
