Einzel Lens
For use with D-Pace ion sources and beams < 100 ke V.
LE-25.15.45
- Able to focus beams of 100 keV or less.
- Mounts directly in D-Pace ion sources.
- Simple, robust design for beam focusing.

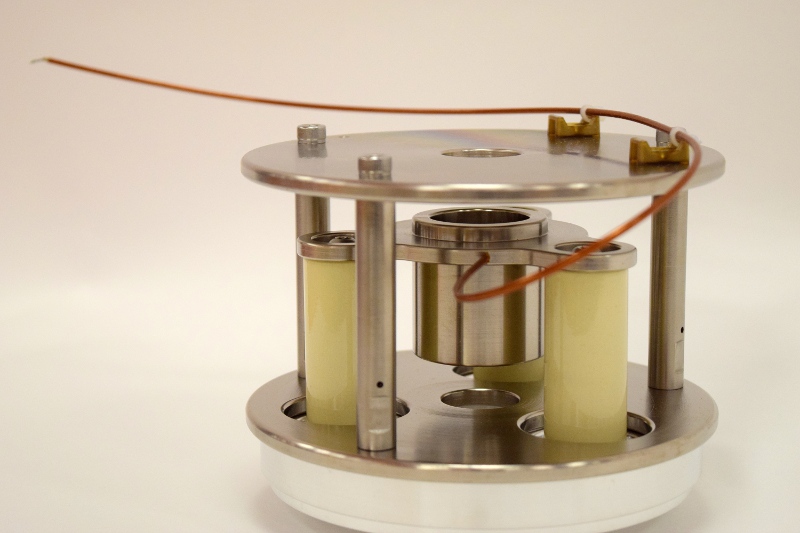

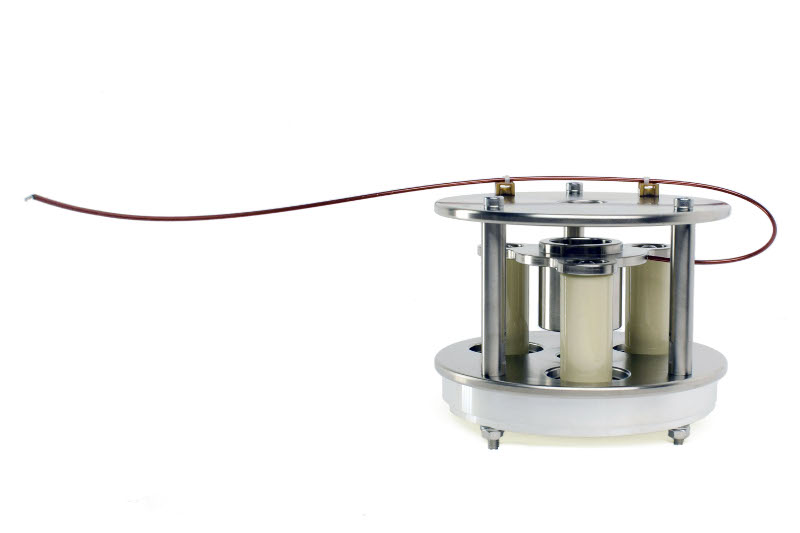

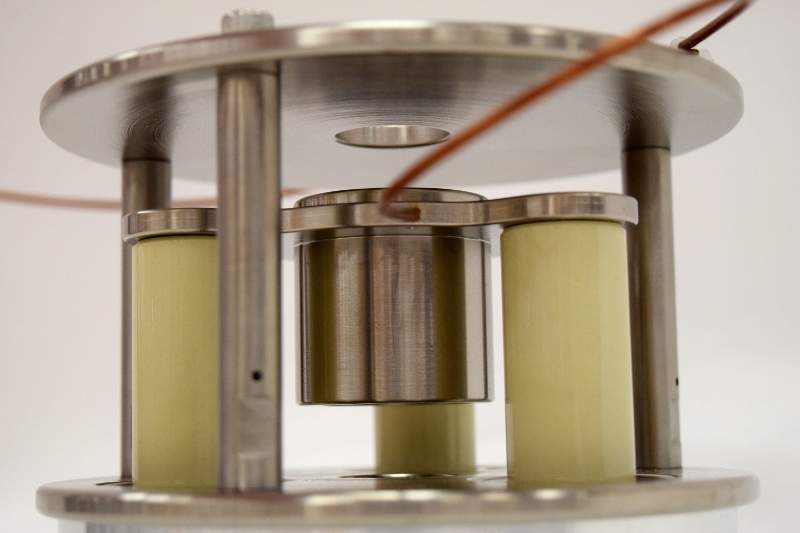

The D-Pace LE-25.15.45 Einzel Lens is a simple, robust way to achieve beam focusing with beams of 100 keV kinetic energy or less. It was designed for the D-Pace filament and RF ion sources, but can easily be incorporated into customer beamlines. This Einzel lens is an in-vacuum device, capable of operating at 25 kV, and is constructed of metal and ceramic components, with PEEk insulated cable and attachements. A 25 kV electrical feedthrough is provided with the Einzel Lens.

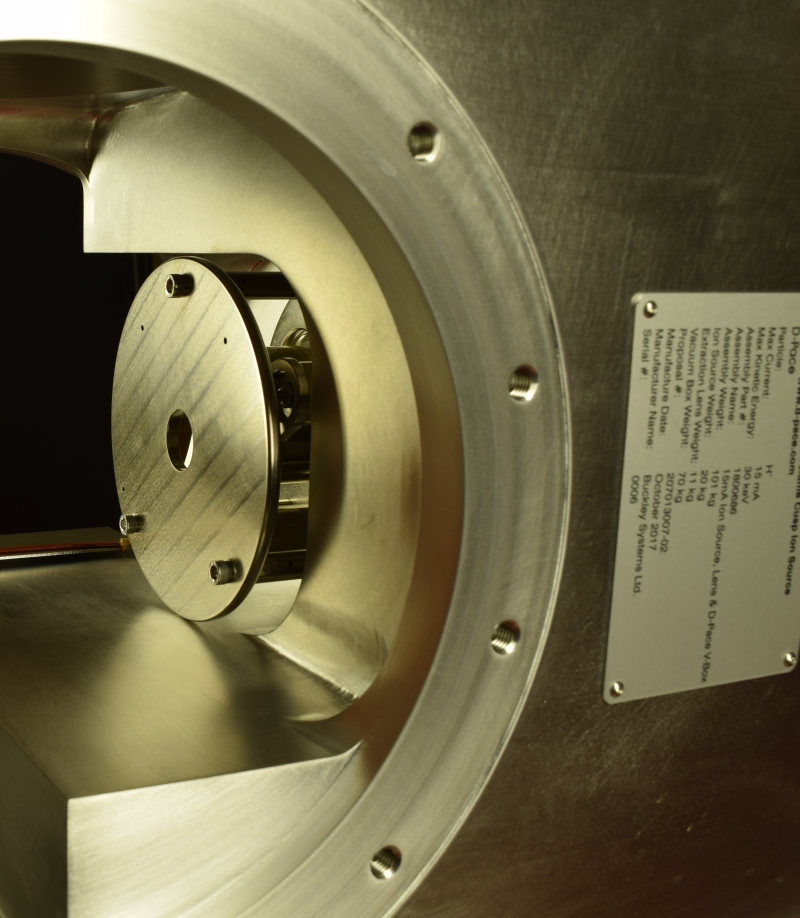

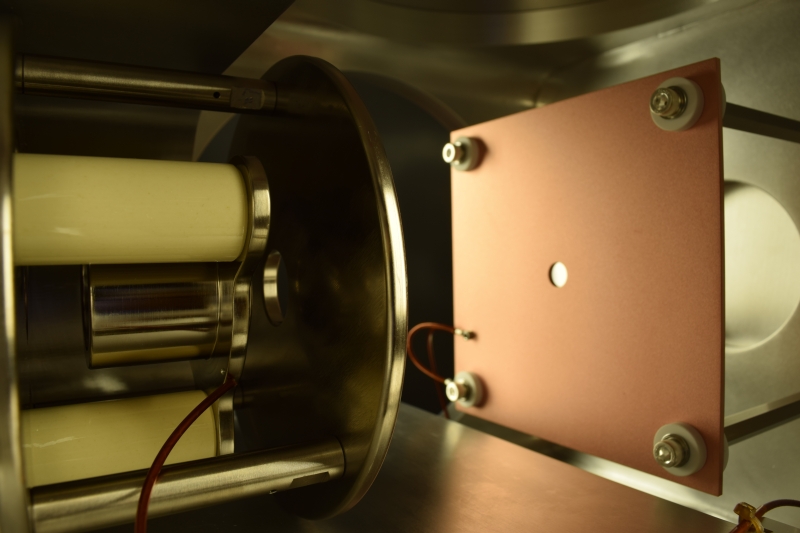

The D-Pace LE-25.15.45 Einzel Lens is an effective addition to the D-Pace ion sources. When purchased with a D-Pace ion source, the Einzel lens can be delivered pre-installed. Visit the ion source areas of the D-Pace website to learn more about these sources, and explore other devices that can aid in beam shaping improvements.
Specifications
| Weight/Mass | 3.2 kg |
|---|---|
| Aperture | Ø25 mm |
| Electrode Gaps | 15 mm |
| Electrode Length | 45 mm |
| Max. Voltage | 25 k V |
| Overall Dimensions | Ø154 mm × 113 mm long |
| Vacuum Pressure Range | 1×10-4 to1×10-9torr |
| Cooling Method | Radiant |
| Electrical Connection | or Threaded Connector, |
| or Push-Pin | Electric Potential Lines |
