[ ISV.RF-30 ]
Multicusp RF Ion Source
RF Negative Ion Source • RF Multicusp • TRIUMF & University of Jyväskylä Licensed
[ Ion Sources ]

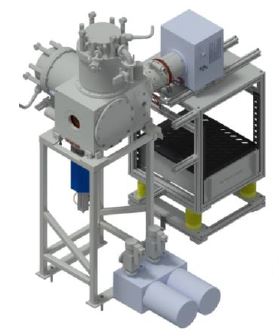

ISV.RF-30
Multicusp RF Ion Source · TRIUMF & Jyväskylä Licensed
In Development

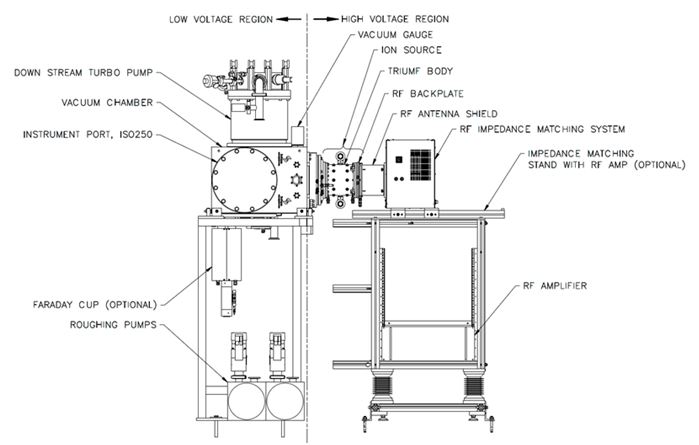

The D-Pace Multicusp RF Ion Source is based on TRIUMF licensed technology and is optimized for reliable negative hydrogen ion production with reduced maintenance requirements. Its filament-free RF plasma system eliminates routine filament replacement and supports long service intervals, while permanent multicusp magnets maintain a compact design suitable for cyclotron and other accelerator applications. Currently in development, contact us for more information.
Beam Intensities
| Ion Species | Beam Current (mA) | Beam Energy (keV) | Notes |
|---|---|---|---|
| Hˉ | 0-7.5 | 20-30 | |
| Dˉ | 0-3 | 20-30 | |
| C2ˉ | 0-0.05 | 20-30 | |
| C2Hˉ | 0-0.05 | 20-30 | |
| C2H2ˉ | 0-0.05 | 20-30 |
Ion Source Characteristics
| Particle Types | Hˉ, Dˉ,C2ˉ, C2Hˉ, C2H2ˉ, O ˉ, O2ˉ |
|---|---|
| Beam Kinetic Energy | 25 keV |

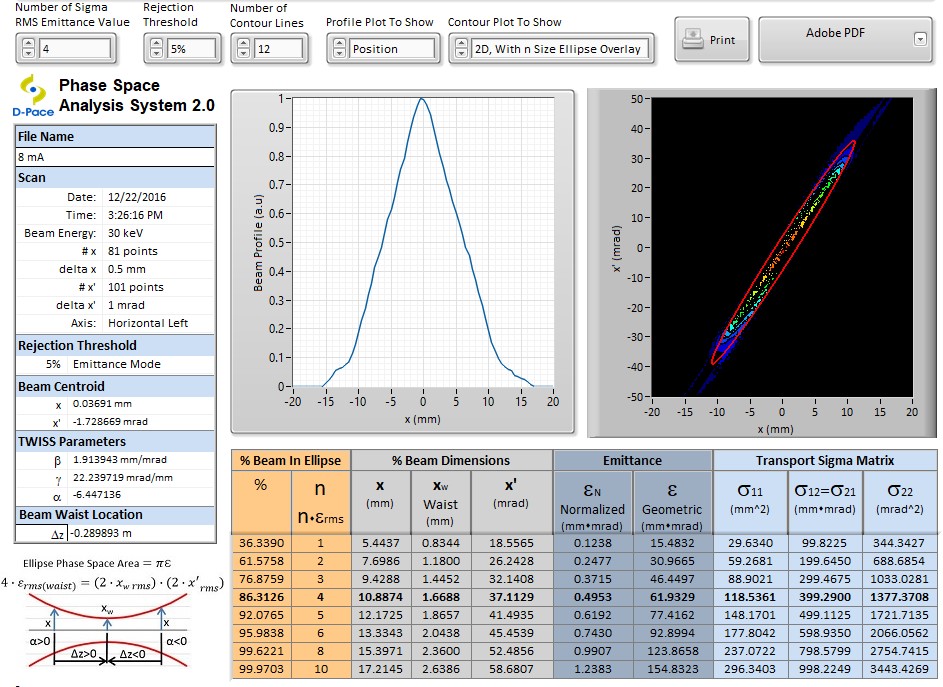

| Normalized Emittance | < 0.7 mm·mrad |
| Beam Purity | > 99% |
| Frequency | 13.56 MHz |
Vacuum System
| Turbo Pump Speed | 2200 L/s |
|---|---|
| Turbo Pump Flange | ISO250 |
| Roughing Pump Capacity | 36 m3/h |
Gas Flow
| Mass Flow Controller | 11-30 sccm |
|---|
Controls
| Control PLC | Allen-Bradley |
|---|---|
| User Interface Options | Custom web-based interface, EPICS compatible |
| HV Interlocks | Safeguards designed in accordance with ISO 13849 |
Power Supplies
| Supply | Current | Voltage / Power |
|---|---|---|
| Max Bias Supply | 40 mA | -30 keV |
| RF Amplifier | 3 kW | 13.56 MHZ |
| Plasma Electrode | 12 A | 70 V |
| Extraction Electrode | 60 mA | 5 kV |
| X & Y Steering Magnet | 10 A | 10 V |
Dr. Anand George
Ph.D
Lead Physicist
Included
- Ion source & vacuum box
Optional
- Turnkey ion source system or any sub-components
- LEBT components
- Diagnostic devices
