QM-60.100
60 mm Bore Quadrupole

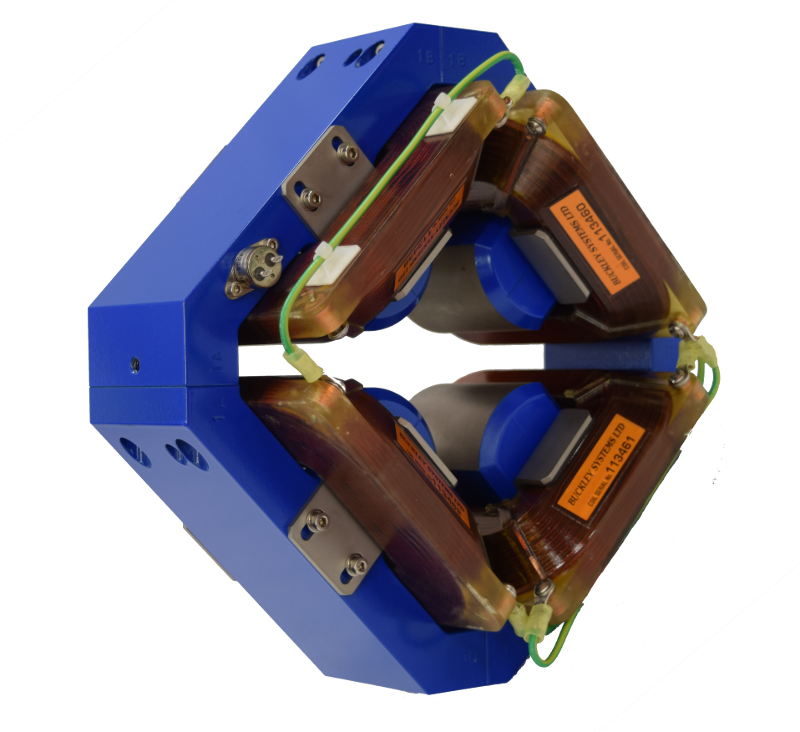

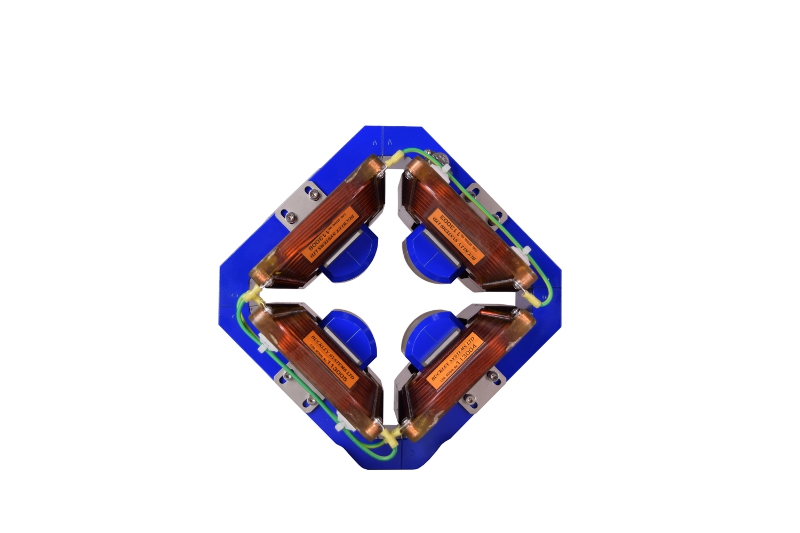

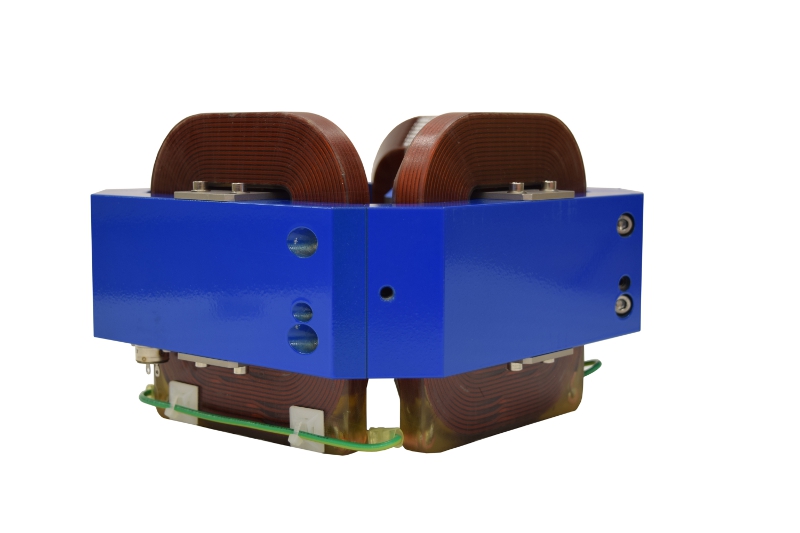

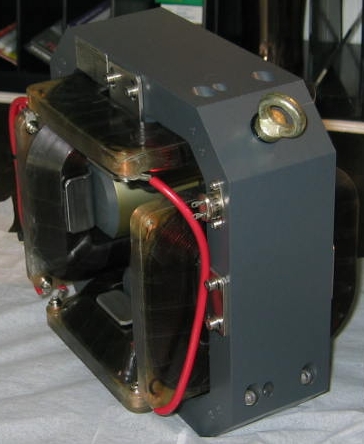

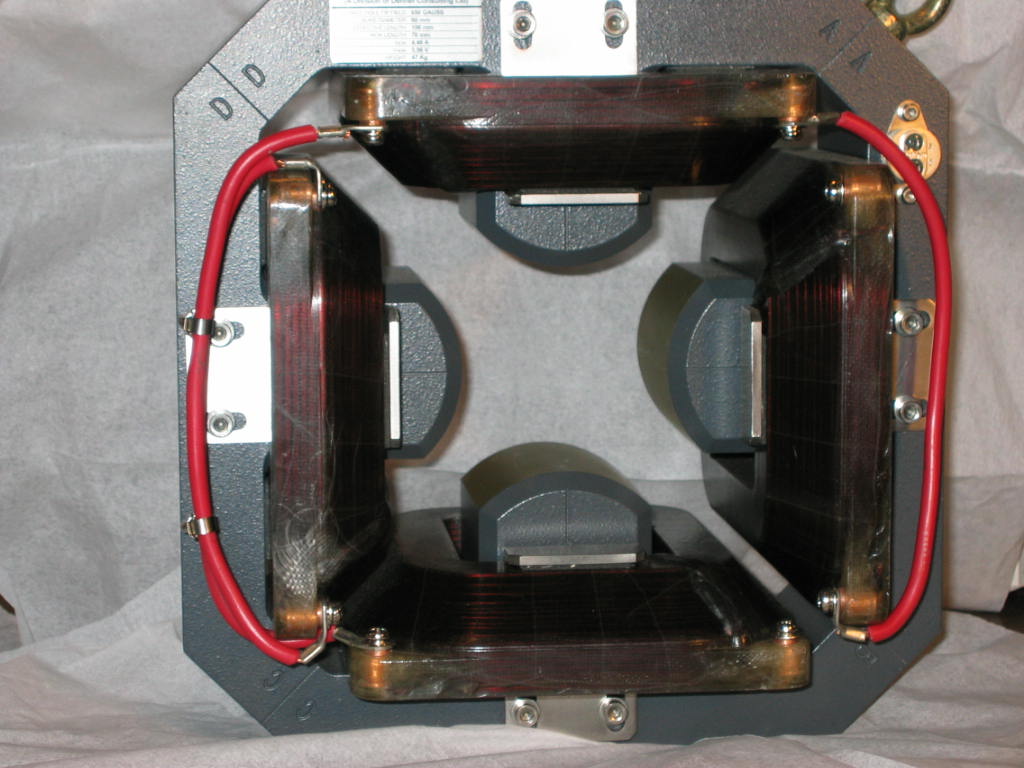

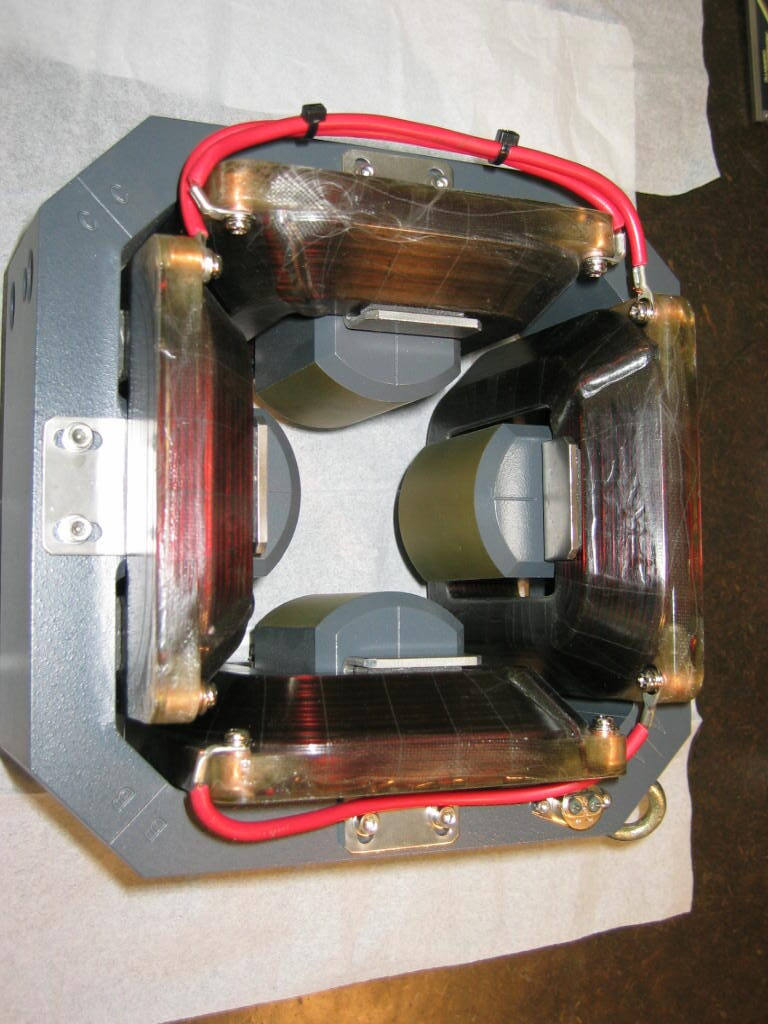

The D-Pace standard 60 mm bore diameter quadrupole magnet for charged particle focusing. The magnet can be purchased as
- Singlet
- Doublet
- Triplet
- With or without beampipe included
- With or without power supplies
Specifications
| Magnet type | Quadrupole |
|---|---|
| Bore Diameter | 60.0 mm |
| Iron Length | 70 mm |
| Effective Length | 100 mm |
| Mass | 47 kg |
| Pole Tip Magnetic Field@ Nominal Current | 0.1 T (1000 Gauss) |
| Nominal Current | 6.86 A |
| Nominal Voltage | 8.55 V |
| Thermal Switch Activation Temperature: | 82°C |
