[ Quadrupoles ]
QM-83.202

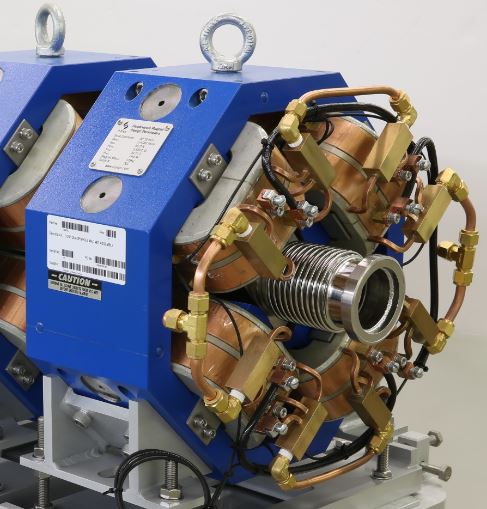

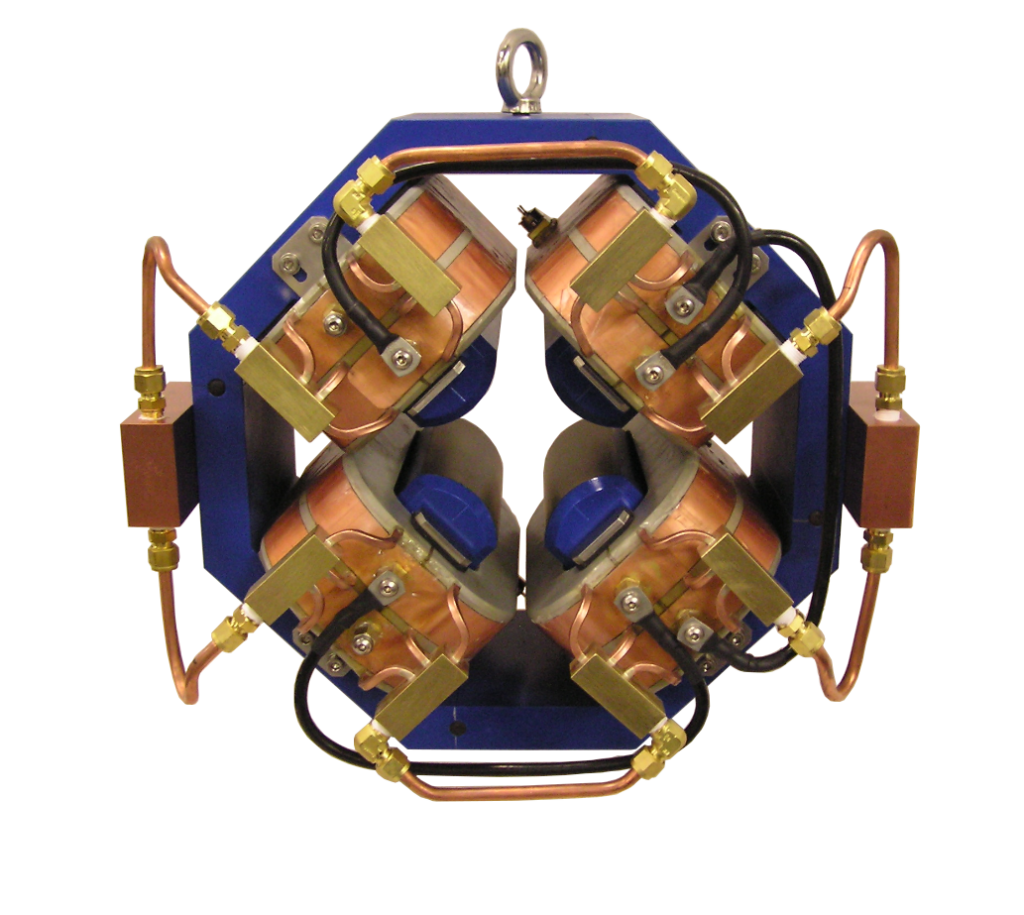

3.25″ Bore Quadrupole
The D-Pace standard 3.25″/82.55 mm bore diameter quadrupole magnet for charged particle focusing. The magnet can be purchased as
- Singlet

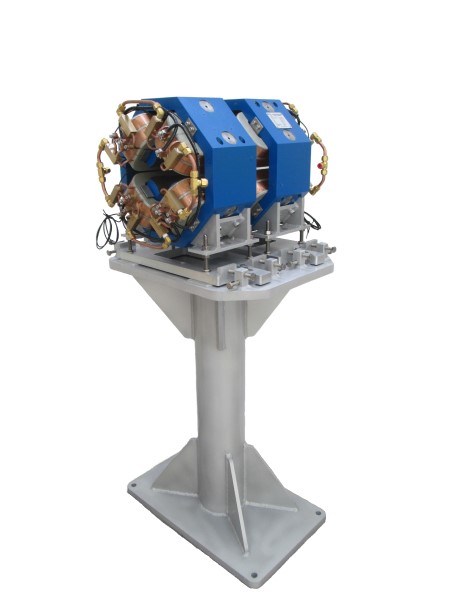

- Doublet
- Triplet
- With or without beampipe included
- With or without power supplies
Specifications
| Magnet Type: | Quadrupole |
|---|---|
| Bore Diameter: | 82.55 mm (3.25 in) |
| Iron Length: | 161 mm |
| Effective Length: | 202 mm |
| Mass: | 125 kg |
| Pole Tip Magnetic Field@ Max Current: | 0.42 T |
| Max Current: | 50 A |
| Max Voltage (Hot) : | 30 V |
| ∆T @ Max Current | ~10˚C |
| Inlet Pressure | ˜8.5 psi |
| ∆P | ~3 psi |
| Thermal switch activation Temperature | 70˚C |
