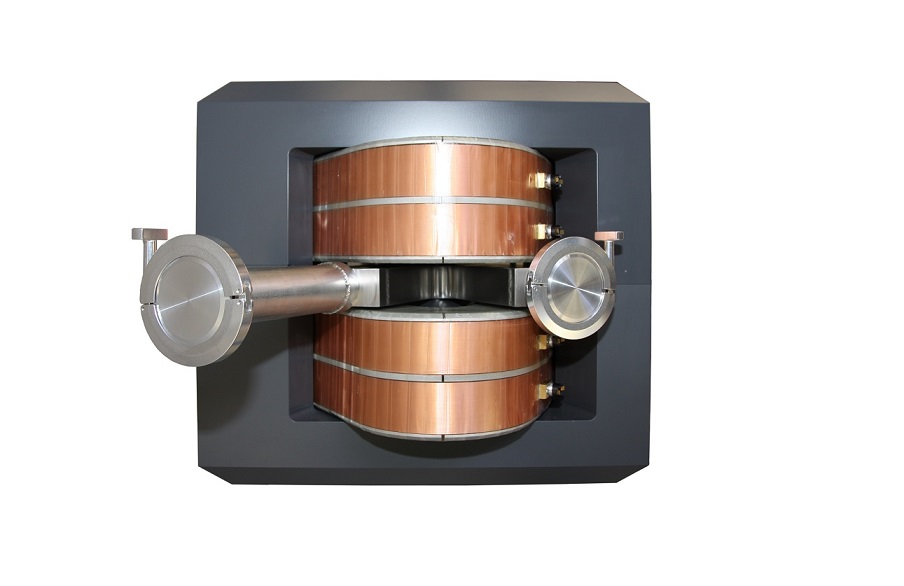

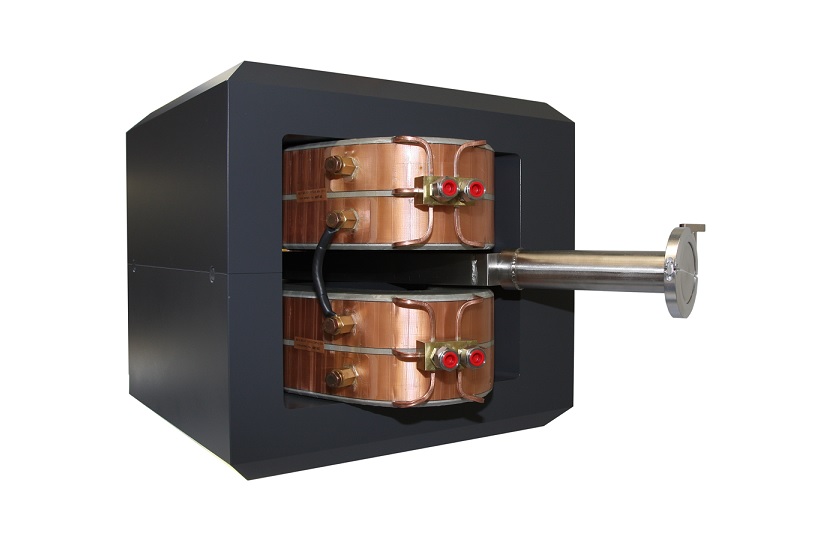

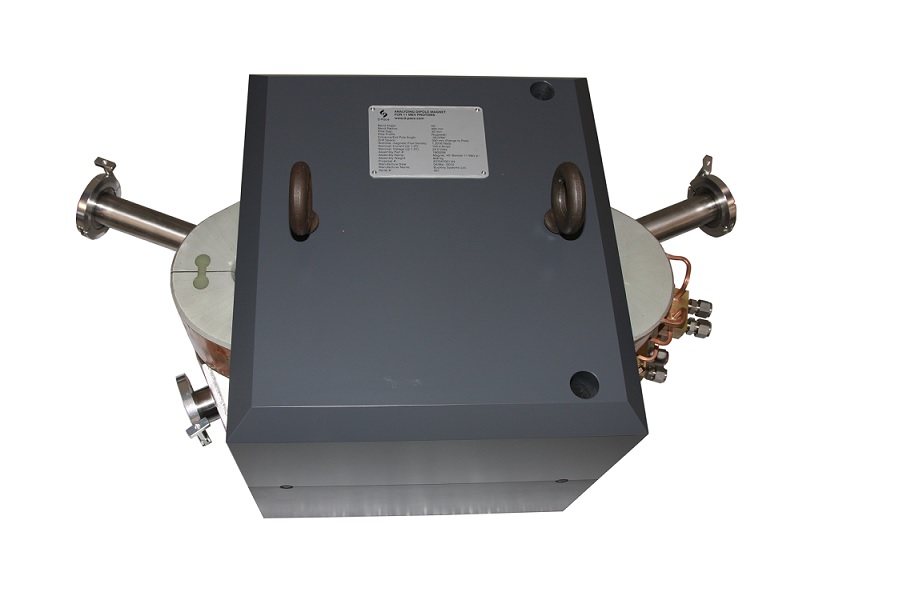

SPEC-100.45
1:100 Resolution Spectrometer, 45° Bender
The D-Pace 1:100 Energy Spectrometer magnet has been designed for resolving proton beams with kinetic energy from 0.5 MeV to 11 MeV, while bending through an angle of 45°. This dipole magnet offers a magnetic rigidity of up to Bρ = 0.48 T•m.
Specifications
| Weight | ~808 kG |
|---|---|
| Nominal Magnetic field | 1.2 T |
| Bρ | 0.48 T•m |
| Bend Angle | 45° |
| Entrance/Exit Pole angle | -36.078° |
| Magnet Gap | 40 mm |
| Entrance & Exit drift length | 350 mm |
| Flanges | KF 50 |
