1:500 Resolution Spectrometer
Resolves ion beams to better than 1 part in 500.
[ Dipoles ]
SPEC-500
1:500 Resolution Spectrometer

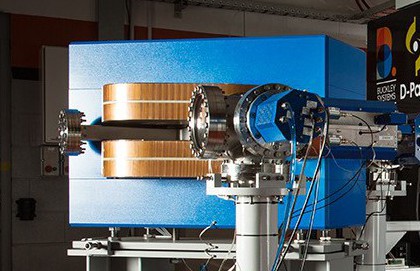

The D-Pace 1:500 Mass/Energy Spectrometer System has been designed for resolving charged particle beams with Bρ = 0.2196 T•m to better than 1 part in 500 in energy. The system comes complete with stands,vacuum chamber, spectrometer magnet, adjustable resolving slits, Faraday cup, power supply etc. Installation, commissioning, and training can also be provided. Custom modifications can be undertaken to meet your particular beam kinetic energy, charge state, particle mass, and beam current conditions.

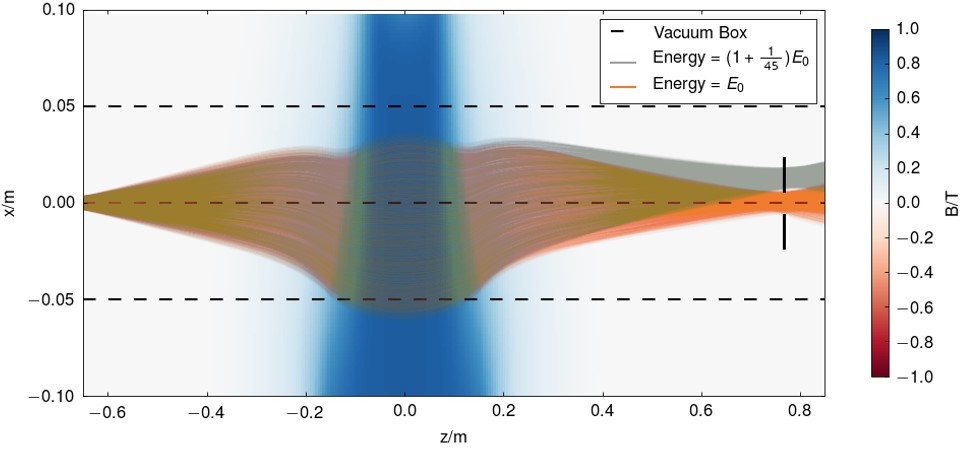

- Energy resolution 1:626 with 1 mm slit gap and small divergence beams, 1:45 with 5 mm slit gap and large divergence beams.
- Example Maximum Beam Energy & Particle Mass: T = 30 keV, q = 1, M = 76 A.M.U.
- Magnet: 90° Dipole, R = 195 mm, Mass = 2 Tonnes
- 40 mm beam height
- 0 – 20 mm manually adjustable gap, accurate to ± 0.05 mm
Specifications
| Mass (Weight) | ~2200 kg |
|---|---|
| Bend Radius/θ/B | 191 mm / 90°/ 1.15 Tesla |
| Bρ | 0.2196 T•m |
| Ent./Exit Slit drift length | 500 mm / 615 mm |
| Vacuum Chamber | 316 Stainless Steel, UHV |
| Magnet Gap | 50 mm (V-Box Gap 42 mm) |
| Entrance & Exit Pole Angle | 34.79° |
| Effective Length | 300 mm |
| Beam Axis Height | 1050 mm |
| Thermal Switches | One per coil strip (4 total) |
| Trip Temperature | 70 °C |
| Qty 2 Slits | D-Pace Spec 2120017 |
| Qty 1 Fixed F-Cup, or | D-Pace Spec 2120022 |
| Qty 1 Actuated F-Cup | D-Pace Spec 2120011 |
| Cooling Water | 2.6 L/min total @ 20 °C |
| Connections | Ø10 mm tube Fitting |
