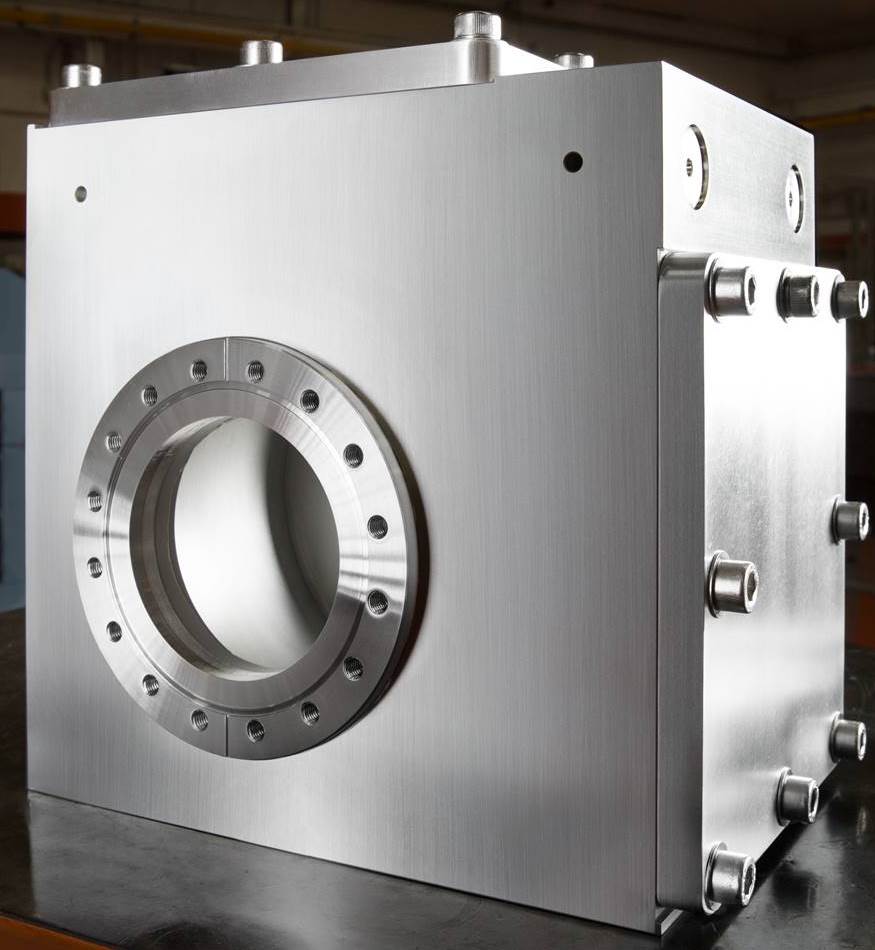

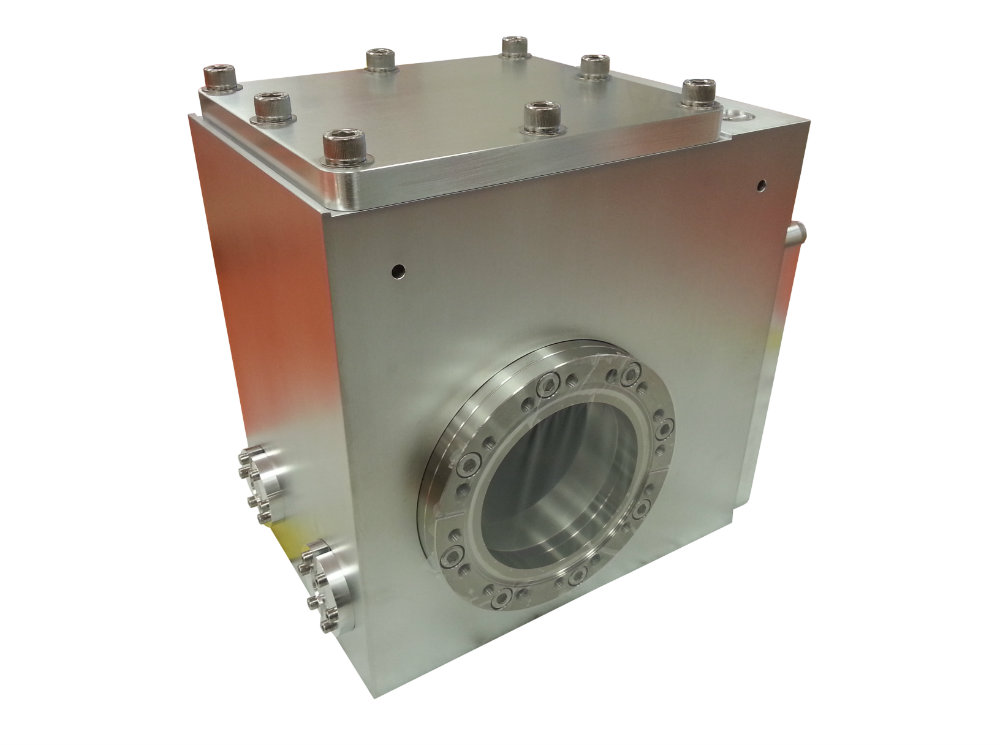

Vacuum Box, ES-4 (Dual, CF, Imperial)
Vacuum box for mounting vertical and horizontal ES-4 Emittance Scanner probes. Imperial CF flange.
[ Accessories ]
VBOX-ES4-CFI
Vacuum Box, ES-4 (Dual, CF, Imperial)

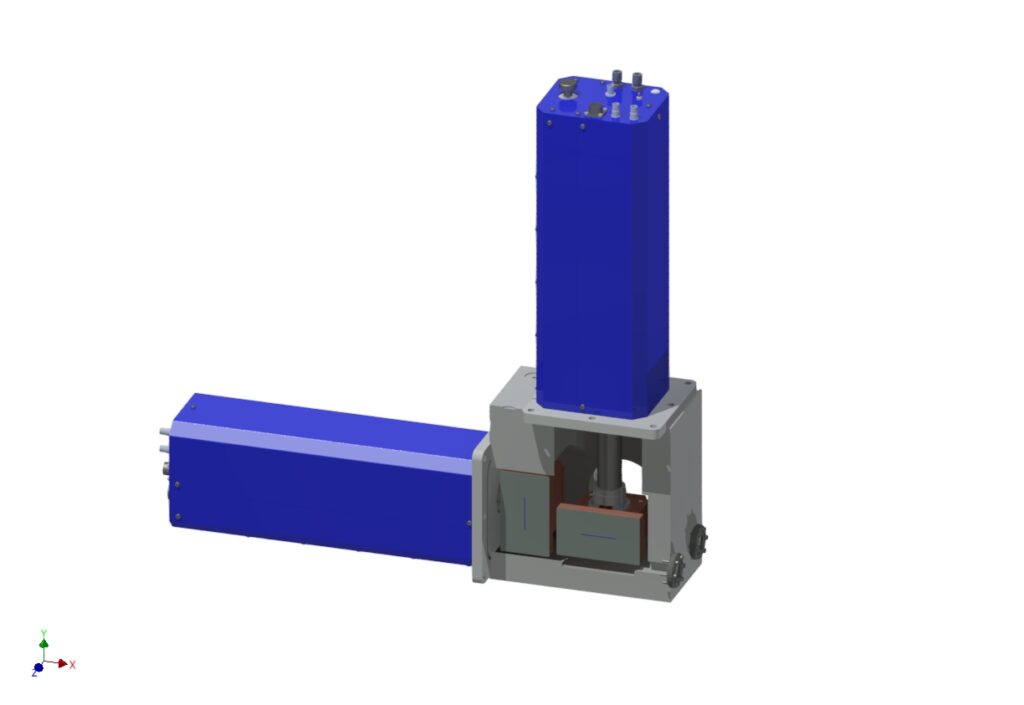

This vacuum box is used to mount one or two D-Pace ES-4 Emittance Scanners probes. Two ES-4 emittance scanner probes to provide xx’ and yy’ scans in the same plane. The emittance scanner controller utilizes interlocks to prevent collisions.
This vacuum box is made from aluminum, but has stainless steel Imperial CF flanges. The stainless steel CF flanges seal with the aluminum vacuum box using O-rings. The vacuum box includes emittance scanner blankoffs and two instrumentation ports.
Contact D-Pace for other interface options such as bimetalic (Alum/SS) and metal seal options.
- Light weight aluminum vacuum box
- Two ES-4 Emittance Scanner ports with blankoffs and O-rings
- Laser alignment fiducials
- Mounting holes
Additional Specifications
| Probe compatibility | ES-4 |
|---|---|
| Number of probes | 1 - 2 |
| Beamline flanges | Imperial CF100 (O.D. 6") |
| Vacuum box material | Aluminum (with stainless flanges) |
| Instrumentation ports | Qty 2 KF 16, with aluminum blank offs and clamps |
