ISV.F-20
Multicusp Negative Ion Source
Permanent multicusp magnets provide effective plasma confinement, while user-friendly tuning, long filament life, and straightforward maintenance make the source especially well suited for cyclotron and other accelerator applications. The D-Pace Multicusp Negative Ion Source is based on TRIUMF licensed technology and provides reliable high current negative hydrogen ion production in a compact, proven design.
Beam Intensities
| Ion Species | Beam Current (mA) | Beam Energy (keV) | Notes |
|---|---|---|---|
| H¯ | 0-15 | 20-30 | |
| D¯ | 0-5 | 20-30 |
Ion Source Characteristics
| Particle Types | H¯, D¯ and more |
|---|---|
| Beam Kinetic Energy | 30 keV |
| Normalized Emittance | < 1 mm·mrad |
| Beam Purity | > 99% (for H¯) |
| Beam Current Stability | ±1% over 24 hours |
Vacuum System
| Turbo Pump Speed | 2200 L/s |
|---|---|
| Turbo Pump Flange | ISO250 |
| Roughing Pump Capacity | 36 m3/h |
Gas Flow
| Mass Flow Controller | 11-30 |
|---|
Controls
| Control PLC | Allen-Bradley |
|---|---|
| User Interface Options | Custom web-based interface, EPICS compatible |
| HV Interlocks | Safeguards designed in accordance with ISO 13849 |

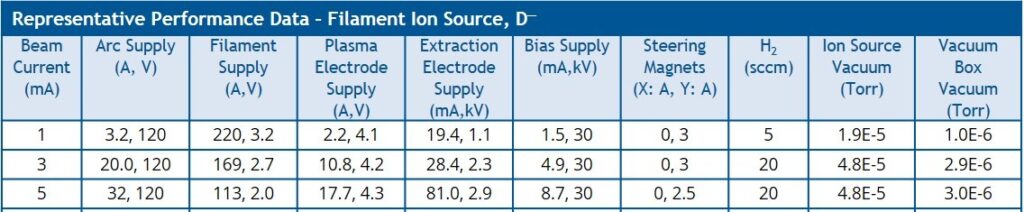

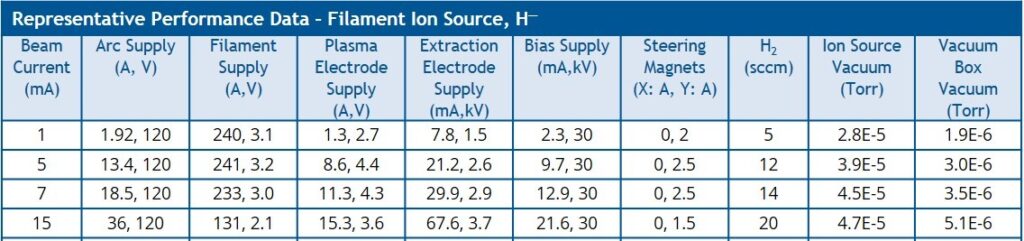

Power Supplies
| Supply | Current | Voltage / Power |
|---|---|---|
| Max Bias Supply | 40 mA | -30 kV |
| Arc Supply | 50 A | 300 V |
| Filament Supply | 400 A | 10 V |
| Plasma Electrode | 60 A | 20 V |
| Extraction Electrode | 220 mA | 10 kV |
| X & Y steering magnet (2 per system) | 60 A | 20 V |
Key Features
| Compact Platform | Small-footprint due to integrated volume-cusp magnets |
|---|---|
| Precise Control | User-friendly tuning, easy beam adjustment |
| Reliable beam production | Repeatable, consistent DC H- beams |

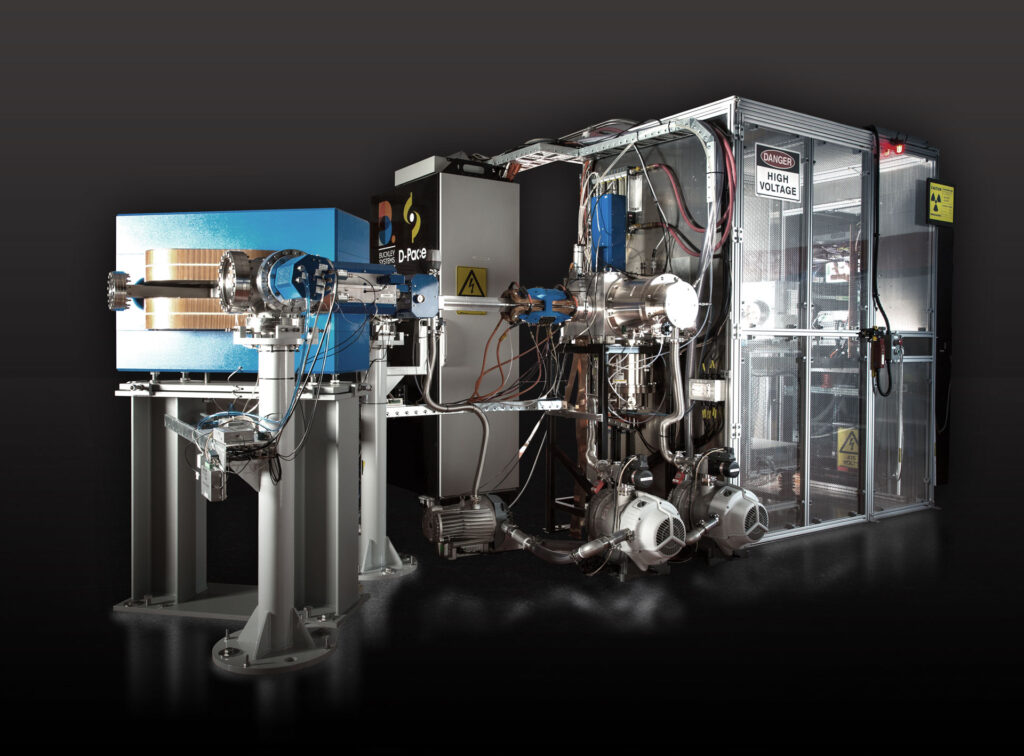

Product Images
Dr. Anand George
Ph.D
Lead Physicist
Included
- Ion source & vacuum box
Optional
- Turnkey ion source system or any sub-components
- LEBT components
- Diagnostic devices
