Multicusp Positive/Negative Ion Source

Name: Multicusp Positive/Negative Ion Source
SKU: ISV.F-90

Positive/Negative Ion Source • Filament-Driven Multicusp • TRIUMF Licensed

Talk to an Expert Download Spec Sheet

[ Multicusp Ion Sources ]

ISV.F-90

Multicusp Positive/Negative Ion Source · D-Pace & TRIUMF Licensed

Industrial Medical Research H^- D^- H⁺ D⁺ He⁺

The D-Pace Multicusp Positive/Negative Ion Source combines the flexibility of positive- and negative-ion production in a single compact platform based on TRIUMF licensed technology. It can produce negative hydrogen beams as well as positive hydrogen, helium, deuterium, and other gaseous ion species. User-friendly tuning, long filament life, and straightforward maintenance make it a practical choice for multipurpose accelerator facilities.

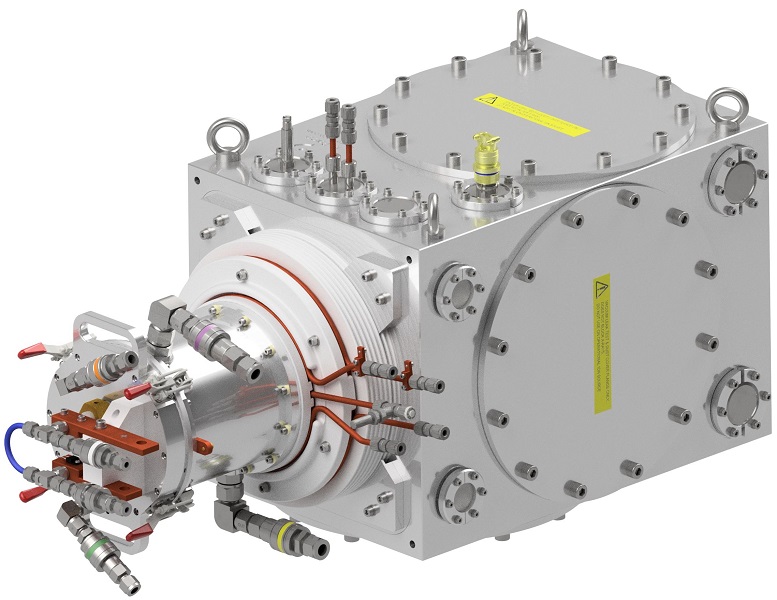

ISV.F-90 Multicusp Positive/Negative Ion Source

Beam Intensities

Ion Species

Beam Current (mA)

Beam Energy (keV)

Notes

Dˉ

0-1

20-30

H⁺

0-3

20-30

D⁺

0-3

20-30

He⁺

0-2.5

20-30

Ion Source Characteristics

Particle Types

H¯, D¯, H⁺, D⁺, He⁺

Beam Kinetic Energy

30 keV

Normalized Emittance

< 0.5 mm·mrad

Beam Purity

> 99% for H¯, >90% for H⁺

Beam Current Stability

±1% over 24 hours

Vacuum System

Turbo Pump Speed

2200 L/s

Turbo Pump Flange

ISO250

Roughing Pump Capacity

36 m³/h

Gas Flow

Mass Flow Controller

1-15 sccm

Controls

Control PLC

Allen-Bradley

User Interface Options

Custom web-based interface, EPICS compatible

HV Interlocks

Safeguards designed in accordance with ISO 13849

Power Supplies

Supply

Current

Voltage / Power

Max Bias Supply

40 mA

±30 kV

Arc Supply

50 A

300 V

Filament Supply

400 A

10 V

Plasma Electrode (Negative config. only)

60 A

20 V

Extraction Electrode

220 mA

±10 kV

Suppression Electrode (Positive config. only)

10 mA

-3 kV

X & Y Steering Magnet

60 A

20 V

Maintenance

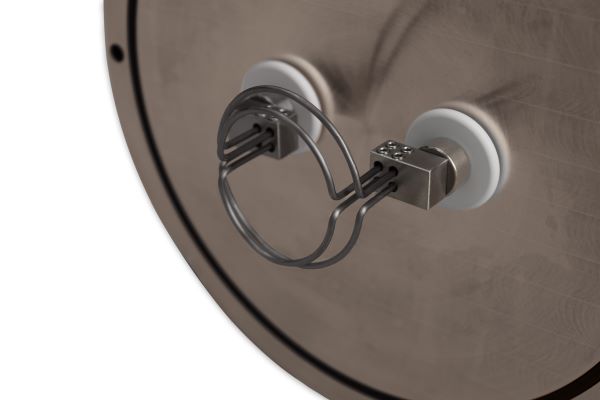

Filament Lifetime

>5250 mA∙hours

Downloads

.PDF

571 KB

ISV.F-90 Spec Sheet

Spec sheet, Multicusp Positive/Negative Ion Source

Download

Dr. Anand George

Ph.D

Lead Physicist

Included

Ion Source & vacuum box

Optional

Turnkey ion source system or any sub-components
LEBT components
Diagnostic devices
