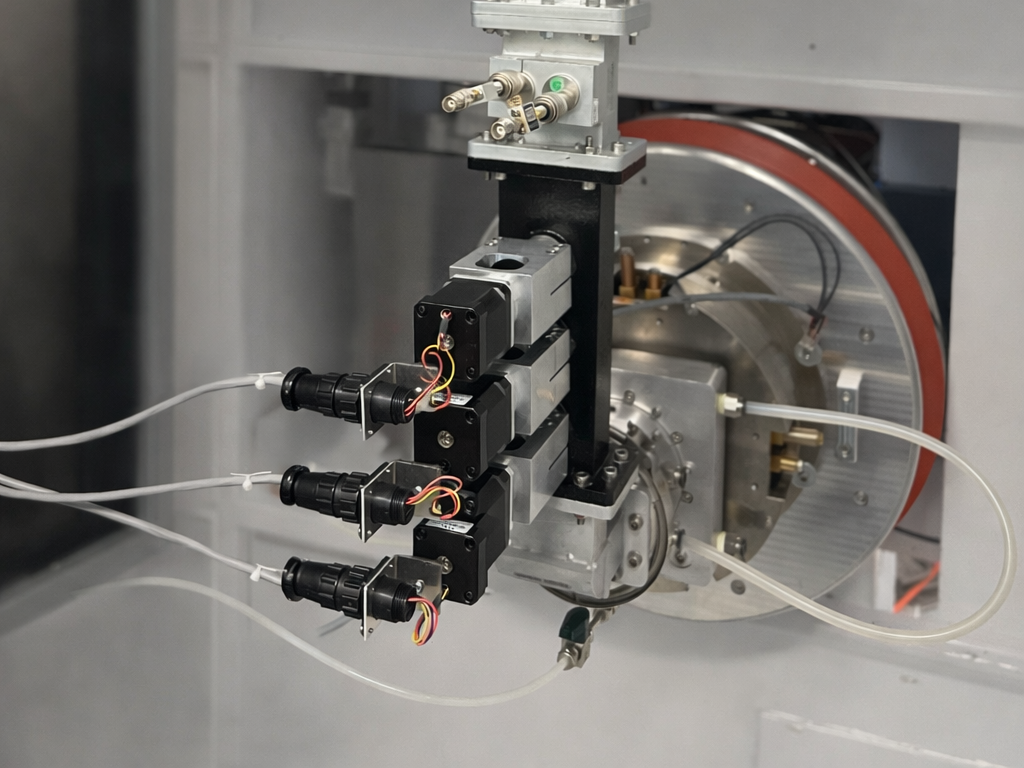

2.45 GHz ECR Ion Source
High Current Positive Ion Source • ECR Technology • Neutron Therapeutics Licensed
IS.ECR-010
Microwave-driven plasma generation provides excellent beam stability, low maintenance requirements, and long service intervals, making the source well suited for continuous research and industrial accelerator applications. The D-Pace ECR Ion Source delivers high beam currents of 30 mA or greater for singly charged (1+) gaseous ions, with beam-current stability of ±1% over 24 hours. This source is also equipped with tunable solenoids and variable extraction energy to allow for different plasma configurations and beam energy variation.
Beam Intensities
| Ion Species | Beam Current (mA) | Beam Energy (keV) | Notes |
|---|---|---|---|
| H+ | 30 | 40-60 | |
| H2+ | 3 | 40-60 | |
| D+ | 30 (est.) | 40-60 | |
| He+ | 30 | 40-60 | |
| Kr+ | 5 | 40-60 |
Ion Source Characteristics
| Particle Types | H+, H2+, He+, D+,Kr+ and most gaseous ions |
|---|---|
| Beam Kinetic Energy | 60 keV |
| Beam Purity | > 90% (for H+) |
| Beam Current Stability | ±1% over 24 hours |
| Frequency | 2.45 GHz |
Vacuum System
| Turbo Pump Speed | 2300 L/s |
|---|---|
| Turbo Pump Flange | ISO250 |
| Roughing Pump Capacity | 36 m3/h |
Gas Flow
| Mass Flow Controller | 0-5 sccm of H2 |
|---|
Controls
| Control PLC | Allen-Bradley |
|---|---|
| User Interface Options | Custom web-based interface, EPICS compatible |
| HV Interlocks | Safeguards designed in accordance with ISO 13849 |
Key Features
| High Beam Current | 30 mA+ |
|---|---|
| Low Maintenance | Long service intervals, 6 months+ of continuous operation |
| Variable Energy | On the fly extraction voltage adjustment |
Applications
| Accelerator Injectors | Stable, low emittance beam |
|---|---|
| Materials processing | Tight energy spread, high current density |
Nominal Beam Characteristics For H⁺ (60 keV)
| Geometric Emittance (1RMS) | < 10 mm⋅mrad |
|---|---|
| Normalized Emittance (1RMS) | < 0.15 mm⋅mrad |
| Distribution | Gaussian |
Included
- Ion source & vacuum box
Optional
- Turnkey ion source system or any sub-components
- LEBT components
- Diagnostic devices
Case studies
Where the IS.ECR-010 has been deployed.
Avalanche Energy Selects D-Pace as Ion Source Partner for Next-Generation Fusion Reactor
To meet these advanced performance needs, Avalanche turned to D-Pace’s Electron Cyclotron Resonance (ECR) ion source (licensed from Neutron Therapeutics)—a powerful, high-current beam solution.
Read case studyD‑Pace Delivers Turnkey ECR Ion Source System to Los Alamos National Laboratory
D‑Pace delivered a turnkey ECR ion source system to Los Alamos National Laboratory, enabling reliable production and mass separation of krypton ion beams. The project highlights D‑Pace's expertise in fully integrated ion source and beamline solutions.
Read case study
